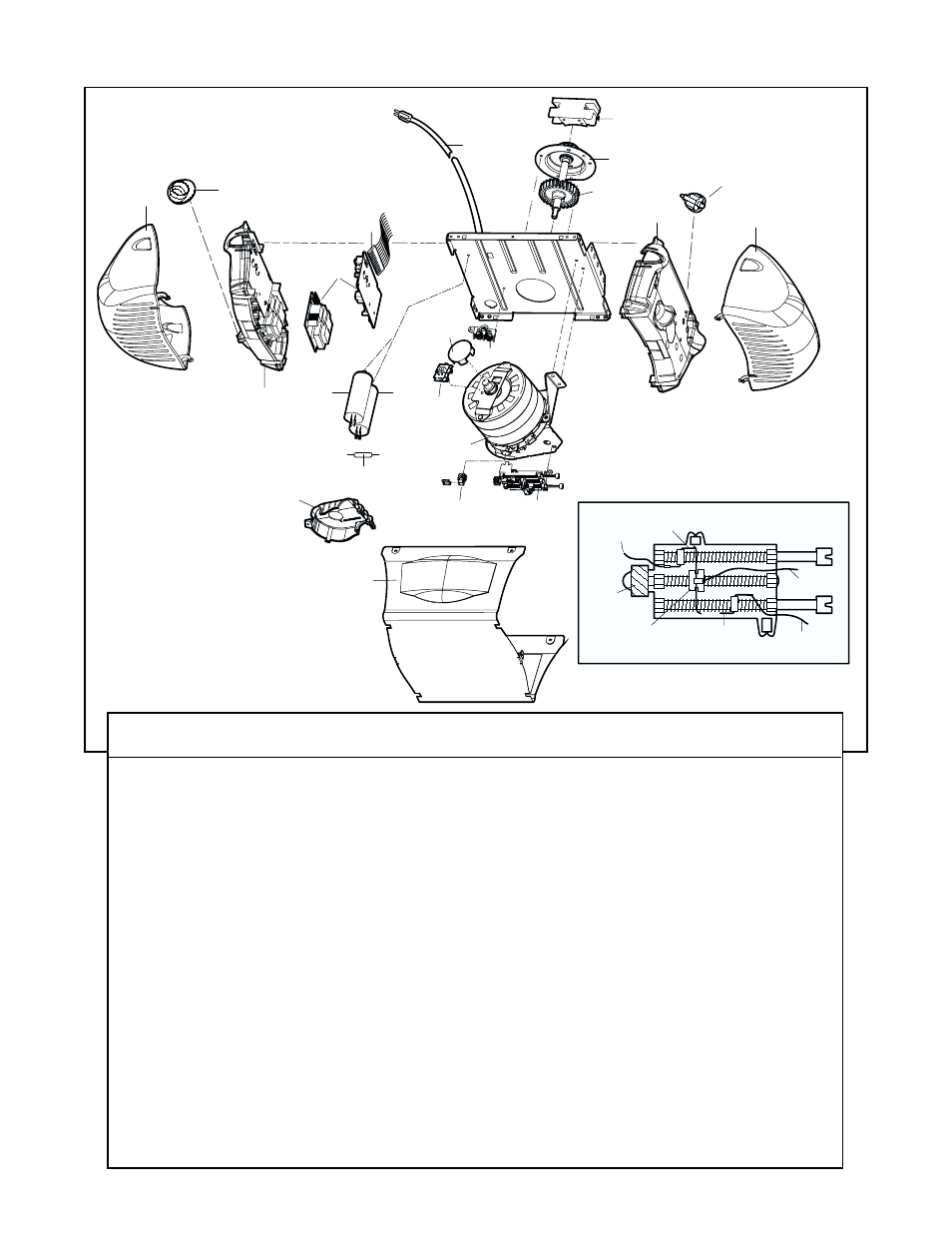

Motor Unit Assembly Parts
34
DN
UP
Brown
Wire
(Down)
Contact
LIMIT SWITCH ASSY.
Grey
Wire
Yellow
Wire
(Up)
Contact Center Limit
Contact
Drive
Gear
2
4
3
1
15
19
8A
17
5
18
9
10
16
14
13 12
6
6
11
8B
8C
7
7
KEYPART
NO.
NO. DESCRIPTION
1 41A5615 Chain spreader
2 41A5585-1 Gear and sprocket assembly
Complete with: Spring washer,
thrust washer, retaining ring,
bearing plate, roll pins (2), drive
gear and worm gear, helical gear
w/retainer and grease
3 41A2817 Drive/worm gear kit w/grease,
roll pins (2)
4 41B4245-1 Line cord
5 41A5484 End panels w/all labels
6 4A1344 Light socket
7 108D68-1 Lens
8A 30B530 Capacitor 56uF
8B 30B529 Capacitor 40uF
8C 41A5637 Resistor
9 41A3150 Terminal block w/screws
10 41D5563-1 Universal replacement motor &
bracket assembly
Complete with: Motor, worm,
bracket, gear case, bearing
assembly, RPM sensor
KEYPART
NO.
NO. DESCRIPTION
11 41A5633 Cover
12 41A2818 Limit switch drive & retainer
13 41D3452-2 Limit switch assembly
14 41A5532 Gear case
15 41A2822-1 Interrupter cup assembly
16 41C4398A RPM sensor assembly
17 41A5635 Receiver logic board assy.
Complete with: Logic board, end
panel w/all labels, light socket
18 41C5588 High voltage wire harness assy.
41C5587 Low voltage wire harness assy.
20 41D180-1 End panel w/all labels
NOT SHOWN
41A2826 Motor shaft bearing kit
41A2825 Opener assembly hardware kit
(includes screws not designated
by a number in illustration)
