6 Attach the power and data cables to the floppy drive.
7 Locate the correct guidance-slot for the drive (slot 2) and align the shoulder screws with the screw
guides.
8 Slide the drive into the bay until it clicks into place.
9 Connect the data cable to the connector labeled "FLOPPY" on the system board (see "System Board
Components" on page 63).
10 Replace the CD/DVD drive.
11 Check all cable connections, and fold cables out of the way to provide airflow for the fan and cooling
vents.
12 Replace the computer cover (see "Replacing the Computer Cover" on page 90).
NOTICE:
To connect a network cable, first plug the cable into the network port or device, and then plug it into the
computer.
13 Connect your computer and devices to electrical outlets, and then turn them on.
Media Card Reader
For information about using the Media Card Reader, see "Using a Media Card Reader (Optional)" on
page 24.

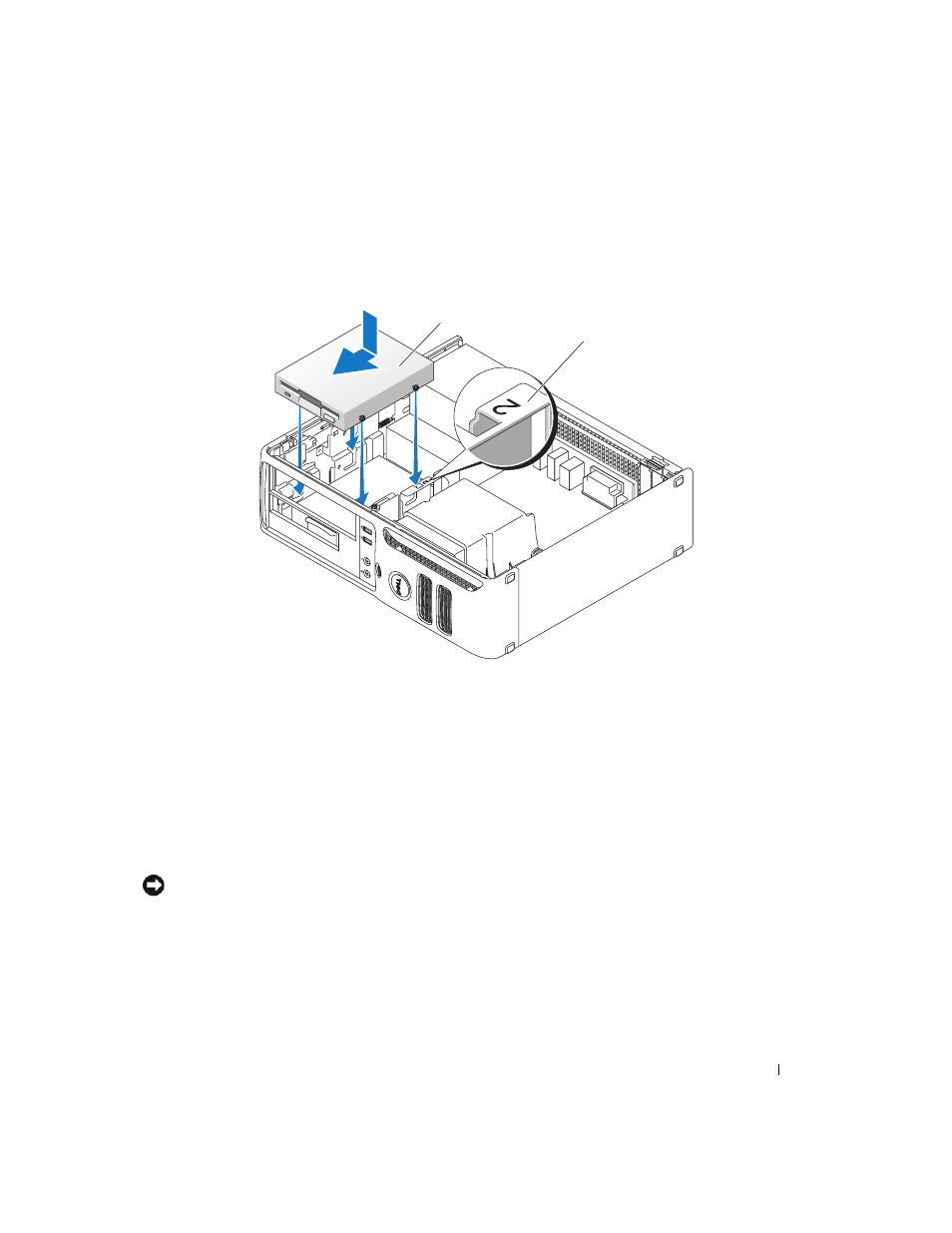

1 floppy drive 2 slot verification number
1
2
