Modem
Dell™ Vostro™ 1220 Service Manual

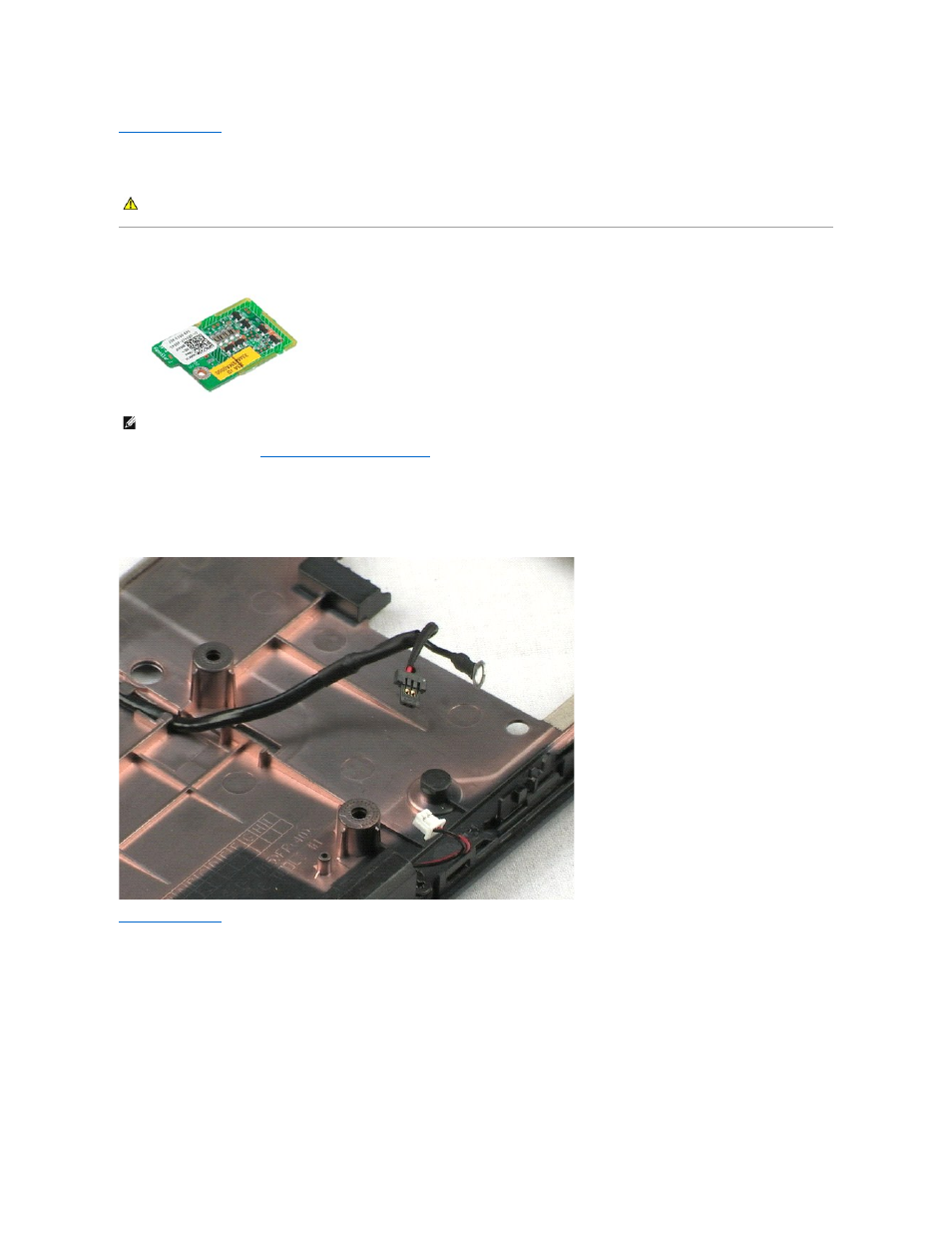

Removing the Modem
1. Follow the procedures in Before Working Inside Your Computer .
2. During installation or removal of ANY hardware, always ensure all data is backed up properly.
3. Remove the battery, hinge cover, keyboard, optical drive, LCD assembly, palm rest, Bluetooth® module, TPM module, hard drive, I/O panel board,
system fan, and system board from the system.
4. Disconnect the modem cable from the modem and remove from the system.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
