Using Your Studio XPS Desktop

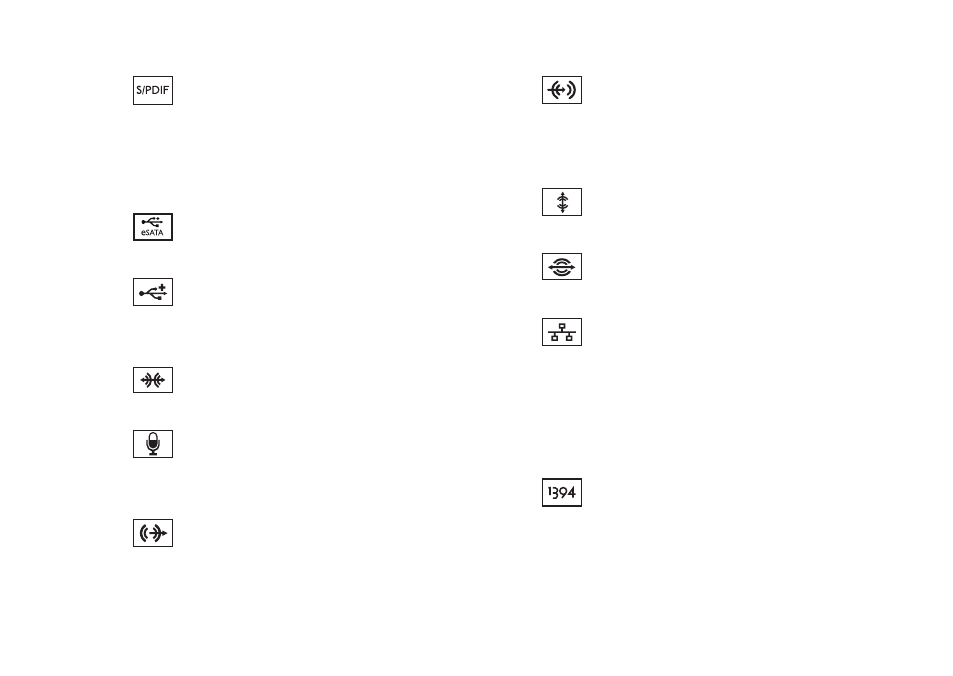

1 S/PDIF connector — Connects to
amplifiers of TVs for digital audio through
optical digital cables. This format carries
an audio signal without going through an
analog audio conversion process.
2 eSATA connector — Connects to
external SATA storage devices.
3 USB 2.0 connectors (4) — Connect
to USB devices, such as a mouse, printer,
keyboard, external drive, or MP3 player.
4 Side L/R surround connector —
Connects to side L/R surround speakers.
5 Microphone connector — Connects
to a microphone for voice or audio input
into a sound or telephony program.
6 Front L/R line-out connector —
Connects to front L/R speakers.
7 Line-in connector — Connects to
recording or playback devices such as
a microphone, cassette player, CD player,
or VCR.
8 Center/subwoofer connector —
Connects to a center speaker or subwoofer.
9 Rear L/R surround connector —
Connects to rear L/R surround speakers.
10 Network connector and light —
Connects your computer to a network
or broadband device if you are using a
wired network. The two lights next to the
connector indicate status and activity for a
wired network connection.
11 IEEE 1394 connector — Connects to
high‑speed serial multimedia devices such
as digital video cameras.
