System Components
Dell™ Latitude™ D800 Service Manual
Back to Contents Page
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in
reverse order.

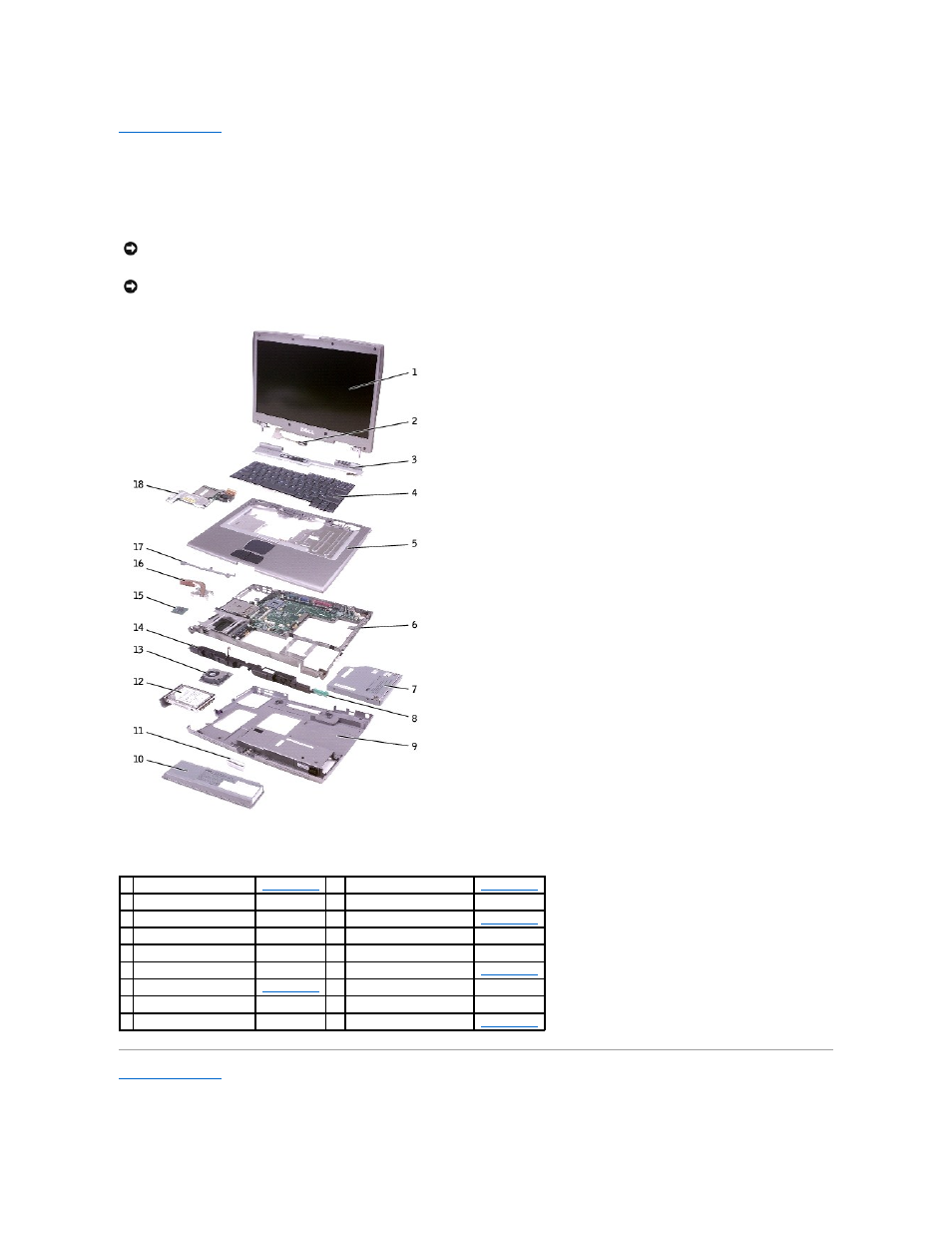

1 display assembly See mini RSL 10 battery See mini RSL
2 display cable 2C415 11 release latch R0956
3 center control cover 7T982 12 hard drive See mini RSL
4 US keyboard service kit G1272 13 fan 6C342
5 palm rest 0N037 14 speakers T0153
6 system board assembly H1591 15 microprocessor See mini RSL
7 optical drive See mini RSL 16 thermal cooling assembly 1U327
8 reserve battery W0124 17 system board support R0543
9 computer base H1599 18 video card See mini RSL
