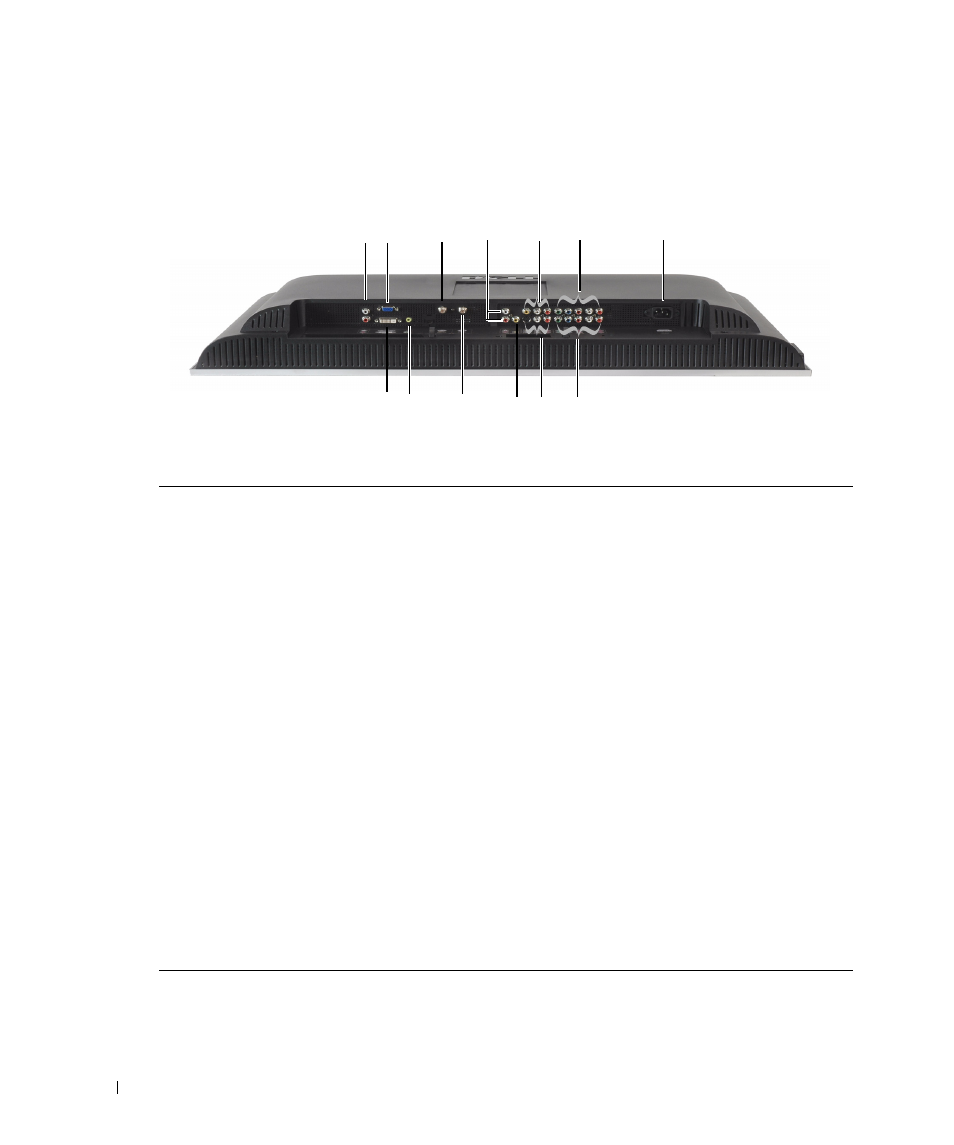

Bottom View
1
DVI audio connector (L / R)
Use the DVI audio connector if you have connected a device
such as a DVD player to the DVI connector.
2
VGA
Connect your computer.
3
DVI connector
Connect your computer or video devices such as a DVD player.
4
Audio connector for VGA or DVI
Connect the audio cable from your computer to the LCD TV
Display.
5
NTSC/Analog Cable
Connect analog cable TV box or an analog antenna.
6
HDTV/Digital Cable
Connect digital cable TV box or a digital antenna.
7
Composite out/Audio Out (L/R)
Connect to VCR (L/R) audio inputs.
8
Composite out/Video Out
Connect to VCR video input.
9
Composite video and audio
connectors (AV1)
Connect devices such as a VCR or DVD player.
10 S-Video video and audio connectors
(AV2)
Connect devices such as a video game system or a VCR.
11 Component video and audio
connectors (AV3)
Connect devices such as a DVD player or cable TV box.
12 Component video and audio
connectors (AV4)
Connect devices such as a DVD player or cable TV box.
13 Power connector
Connect your power cord.
