CAUTION: Label all the cables correctly before disconnecting any cables. Ensure that the cables are reconnected
to the same ports when installing the controller.
4. Disconnect all the cables connected to the back of the NAS appliance.
5. Remove the controllers from the NAS appliance.
6. Remove the NAS appliance from the rack.
7. Open the NAS appliance.
8. Using a #2 Phillips screwdriver, loosen the two captive screws that secure the power transmission assembly to the
chassis.
9. Holding the touch points, lift the power transmission assembly up until the power transmission disengages from the
midplane board.
10. Lift the power transmission assembly out of the chassis.

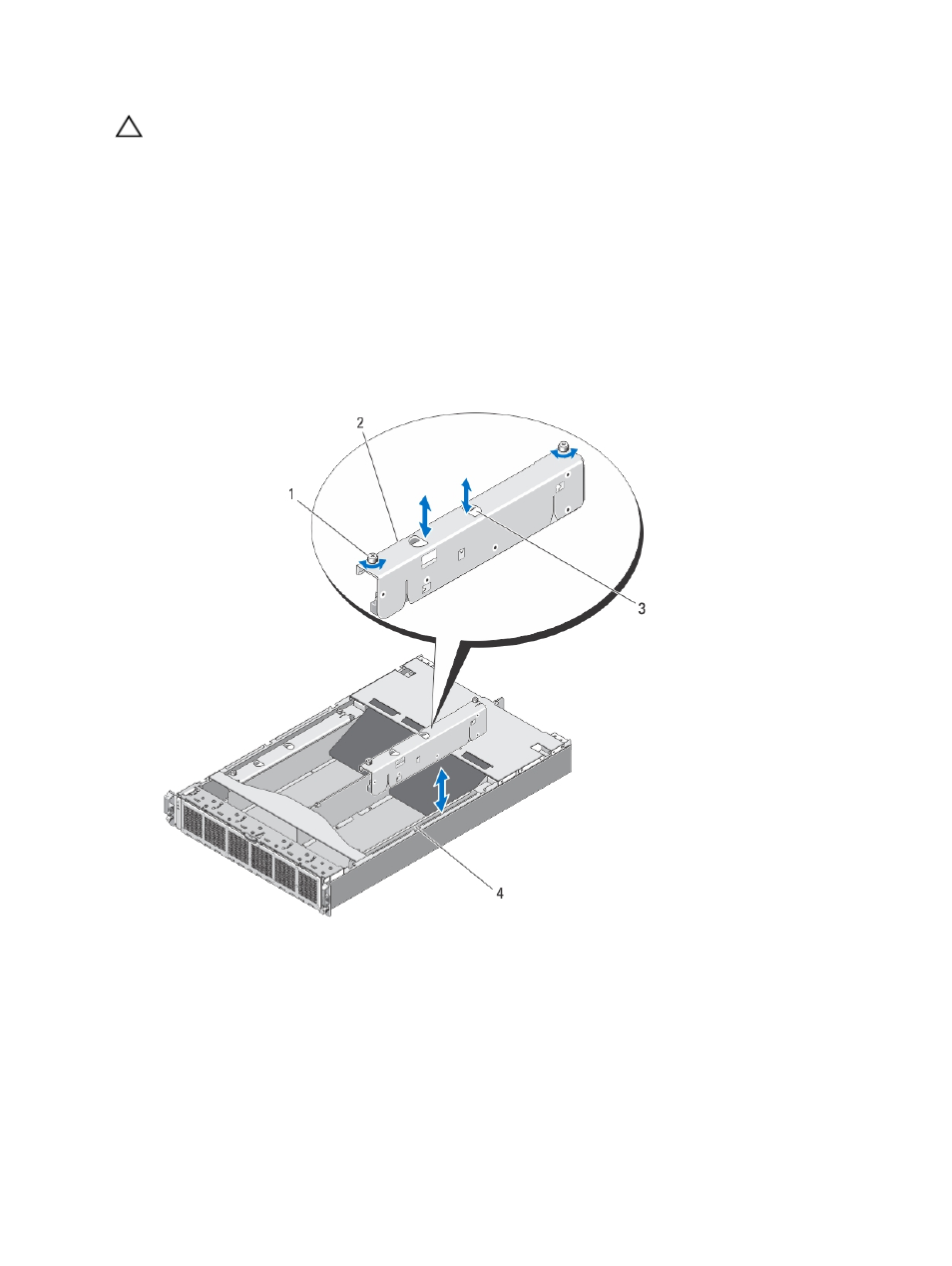

Figure 17. Removing and Installing the Power Transmission Assembly
1. captive screws (2)
2. power transmission assembly
3. touch points (2)
4. NAS appliance chassis
28
