Dell Latitude LM Service Manual Update 9
E
MI Changes
The following EMI changes may have been made to your computer, and the
sections in Chapter 4 should be updated to reflect these changes.
Keyboard
The heat sink in your computer may be slightly different from the one shown in
Figure 4-25. There may be a conductive sponge added to your computer.
Top Assembly
If you have a Latitude MMX computer, use the following figure for the removal
and replacement procedure. The top assembly has two hard-disk drive contact
springs on the underside of the top assembly. There is also a conductive sponge
added to the top assembly (see the following figure).

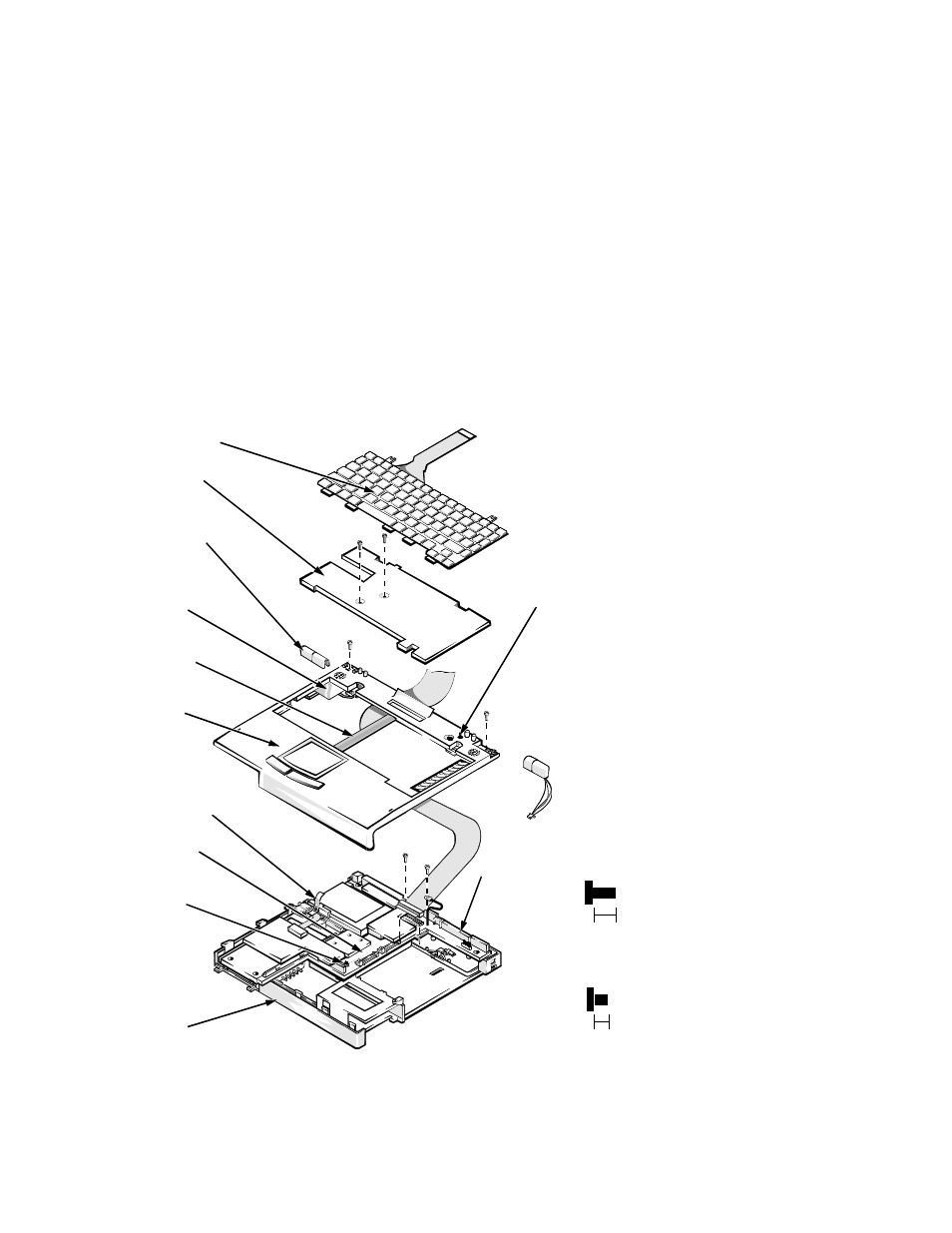

Top Assembly Removal
hinge cover (2)
keyboard
touch pad
connector
main board
top assembly
bottom
assembly
(screws SD1 and
SD2 are 5 mm) SD3
5 mm
SD4
hook
display close
button
SD1
SD2
(screws SD3 and
SD4 are 3 mm)
3 mm
kapton tape
EMI foil
heat sink
conductive sponge
