About Your Monitor  15
9 ML2(n) 19 GND
10 ML0(p) 20 +3.3 V DP_PWR

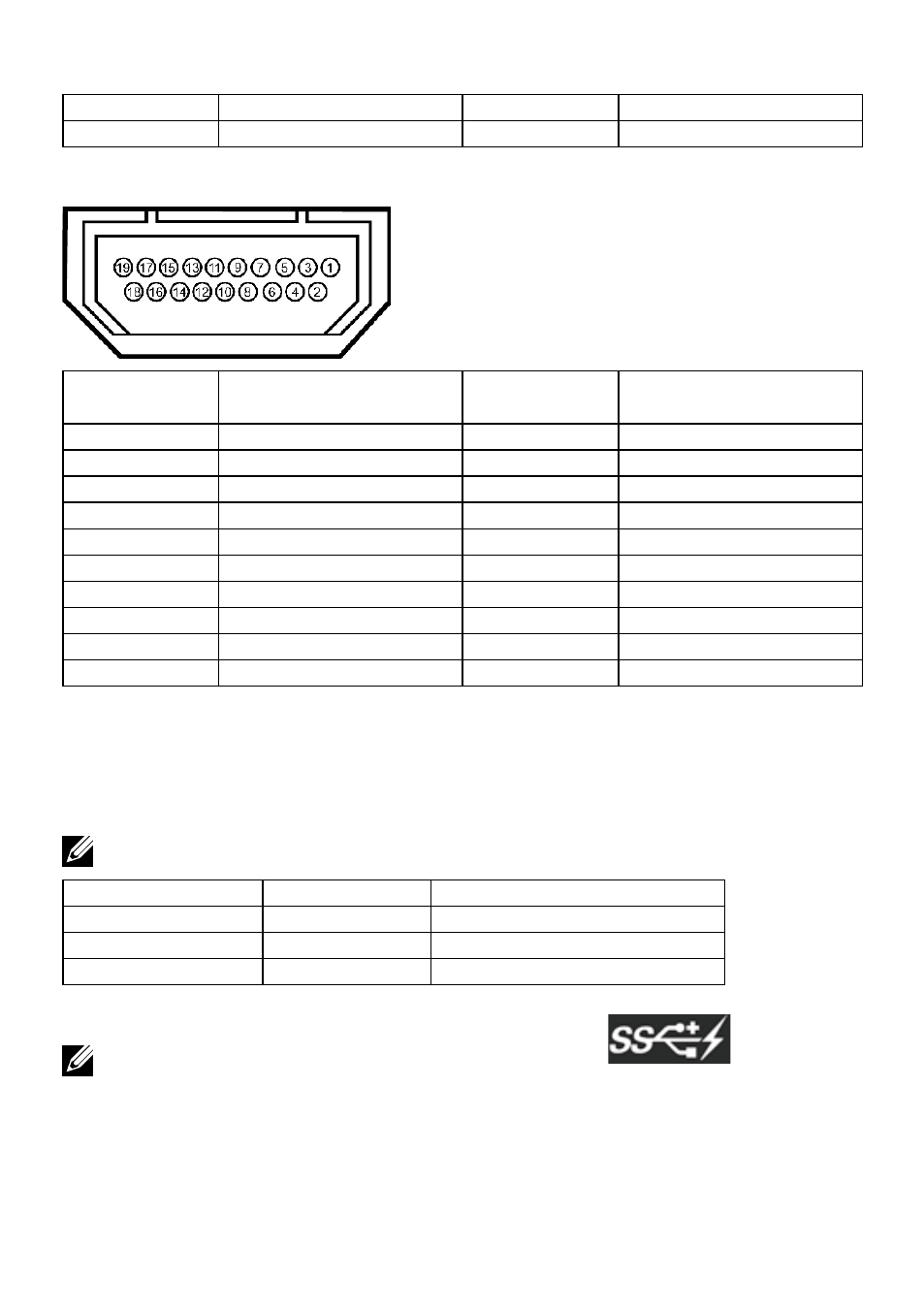

19-pin HDMI Connector
Pin Number 19-pin Side of the
monitor connector
Pin Number 19-pin Side of the
monitor connector
1 TMDS DATA 2+ 11 TMDS CLOCK SHIELD
2 TMDS DATA 2 SHIELD 12 TMDS CLOCK-
3 TMDS DATA 2- 13 Floating
4 TMDS DATA 1+ 14 Floating
5 TMDS DATA 1 SHIELD 15 DDC CLOCK (SDA)
6 TMDS DATA 1- 16 DDC DATA (SDA)
7 TMDS DATA 0+ 17 GROUND
8 TMDS DATA 0 SHIELD 18 +5 V POWER
9 TMDS DATA 0- 19 HOT PLUG DETECT
10 TMDS CLOCK
Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the
back and bottom of your monitor.
NOTE: The USB ports on this monitor are USB 3.0 compliant.
Transfer speed Data rate Power consumption
Super Speed 5 Gbps 4.5 W (Max., each port)
Hi-Speed 480 Mbps 2.5 W (Max., each port)
Full Speed 12 Mbps 2.5 W (Max., each port)
NOTE: Up to 1.5 A on USB downstream port (port with
lightning icon) with BC 1.2 compliance devices; up to 0.9 A on the other 3
USB downstream ports.
