Dell Powervault NX400 - Manual (Page 14)

Item Indicator, Button, or
Connector
Icon Description
4 Serial connector Allows you to connect a serial device to the system.
5 PCIe expansion card slot 2 Allows you to connect a full-height PCI Express expansion
card.
6 Video connector Allows you to connect a VGA display to the system.
7 Ethernet connectors (2) Two integrated 10/100/1000 Mbps NIC connector.
8 USB connectors (2) Allows you to connect USB devices to the system. The
ports are USB 2.0-compliant.
9 System identification
connector Connects the optional system status indicator assembly
through the optional cable management arm.
10 System identification button The identification buttons on the front and back panels
can be used to locate a particular system within a rack.
When one of these buttons is pressed, the LCD panel on
the front and the system status indicator on the back
flashes until one of the buttons is pressed again.
Press to toggle the system ID on and off.
If the system stops responding during POST, press and
hold the system ID button for more than five seconds to
enter BIOS progress mode.
To reset iDRAC (if not disabled in F2 iDRAC setup) press
and hold the button for more than 15 seconds.
11 Power supply (PSU1) 550 W
NOTE: For non-redundant power supply units, there is
only one power supply socket. 12 Power supply (PSU2)
NIC Indicator Codes

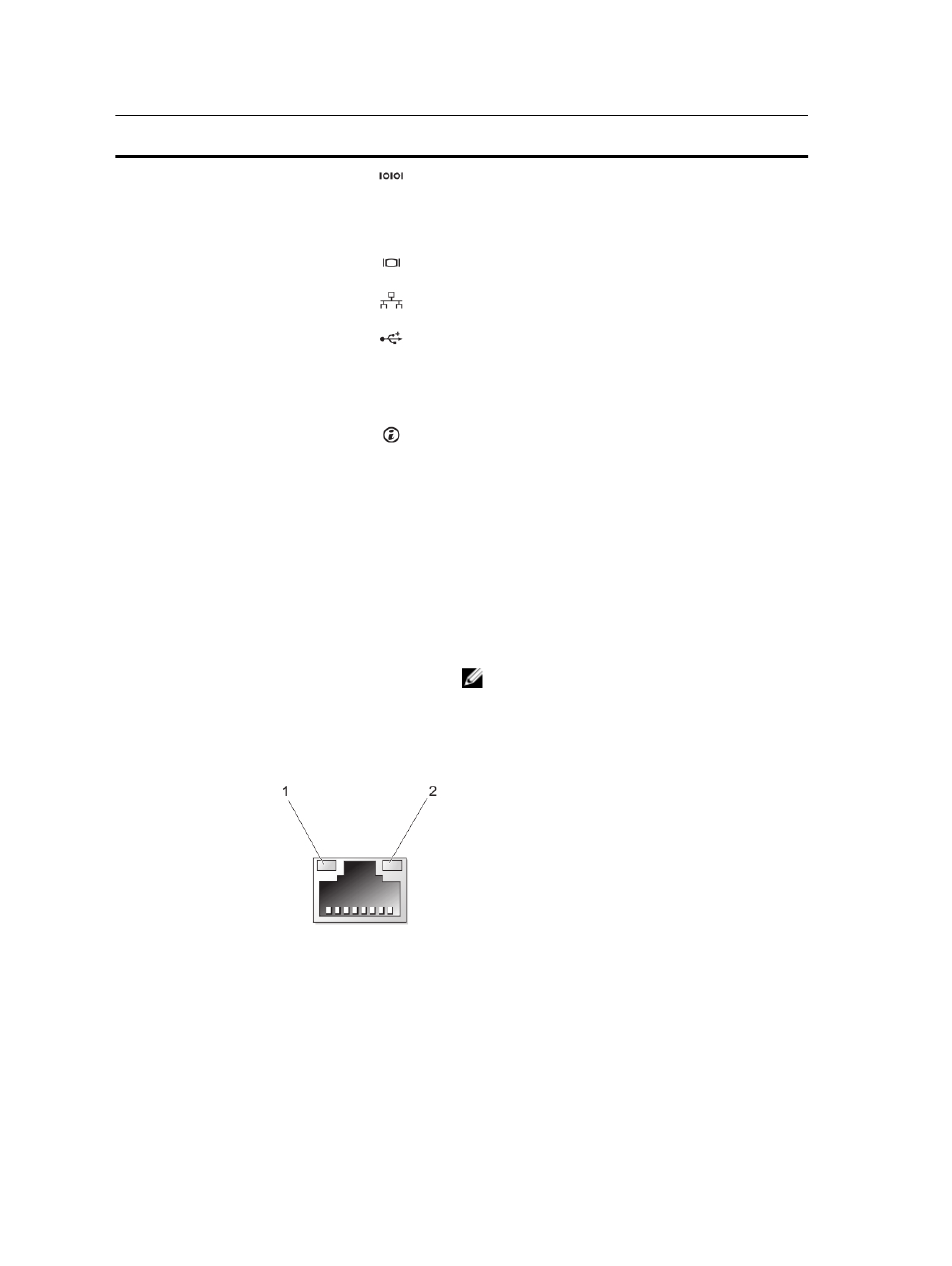

Figure 6. NIC Indicator
1. link indicator
2. activity indicator
14
