Dell UPS 1000R - Manual (Page 27)

27 Upgrading UPS Firmware |

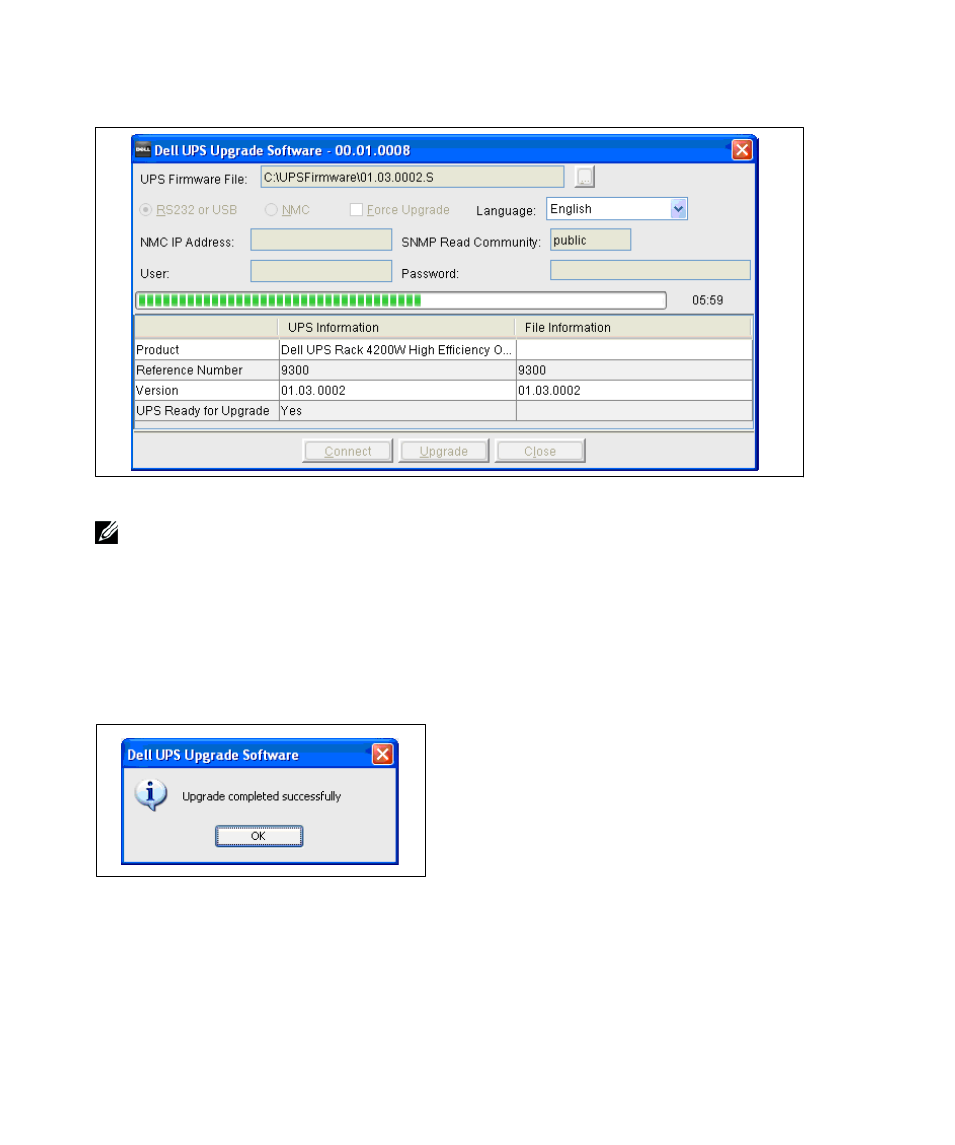

Figure 18. Monitoring Progress as the UPS Firmware Upgrades
NOTE: While upgrading, the UPS LCD displays the message Flash Update in Process. A progress bar with the
upgrade percentage completed also displays.
13 Determine the upgrade completion status as follows:
S
If the UPS firmware upgrade is successful, a notification message displays and this procedure
is completed (see Figure 19).
S
If errors occur during the upgrade, an error message displays (see Figure 20). Continue to
Step 14.
Figure 19. Successful Upgrade Message
