Removing the power button module – Dell XPS 8500 (Early 2012) User Manual
Page 90
1
2
3
4

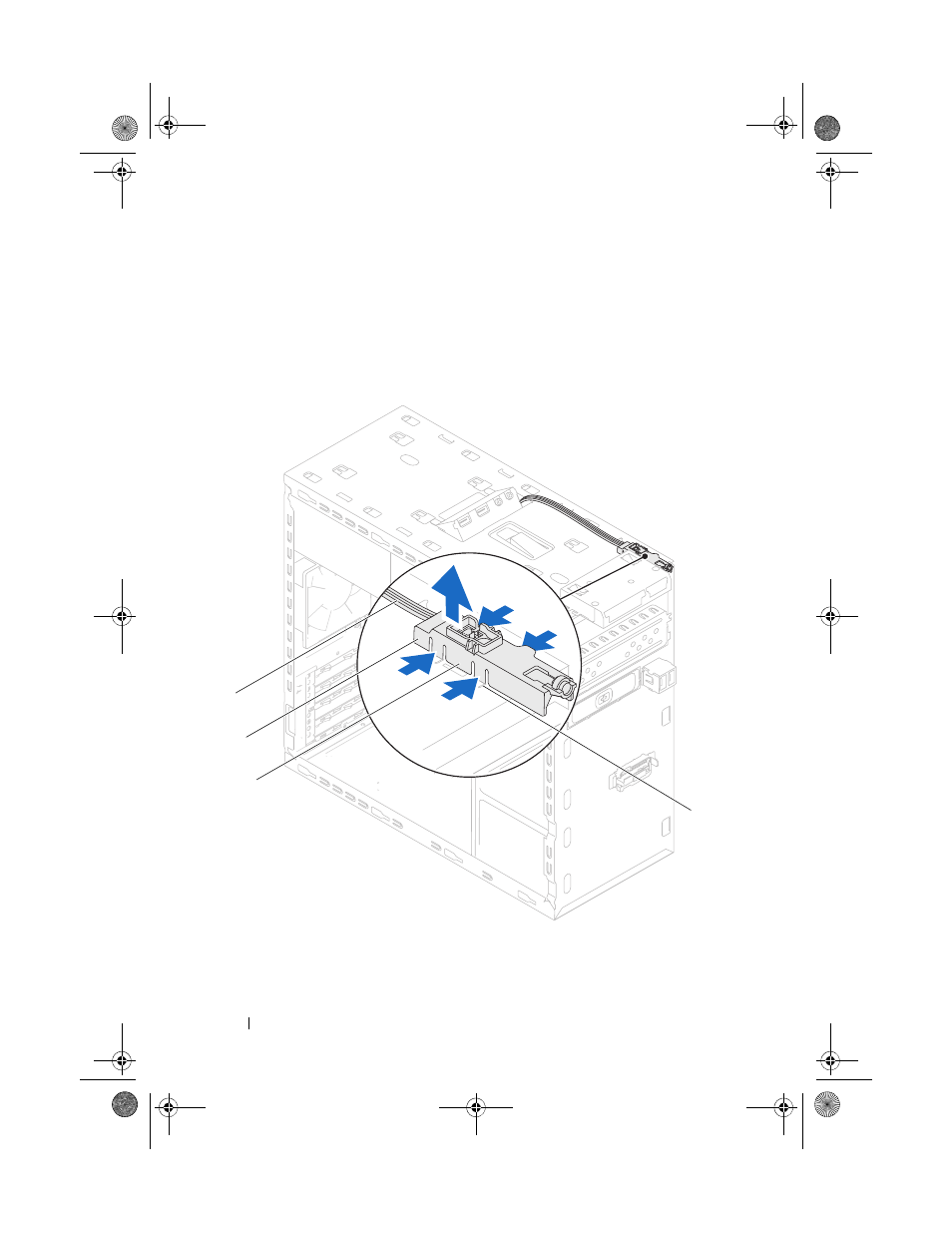

Removing the Power Button Module
1 Disconnect the power button module cable from the system board
connector, F_PANEL. See "System-Board Components" on page 21.
2 Press the power button module tabs and lift the power button module to
release it from the top panel.
1
cable
2
power button module
3
power button module tabs (4)
4
slot
90
Power Button Module
