46 | Removing the System Board
5 Turn the computer over.
6 Lift the connector latch and, using the pull-tab, disconnect the USB-board cable
from the system board.
7 Disconnect the speaker cable from the system board.
8 Disconnect the hard-drive cable from the system board.
9 Disconnect the power-adapter port cable from the system board.
10 Disconnect the camera cable from the system board.
11 Remove the screw that secures the system board to the computer base.
12 Lift the system-board at 45-degree angle and release the system-board ports from
the slots on the computer base.

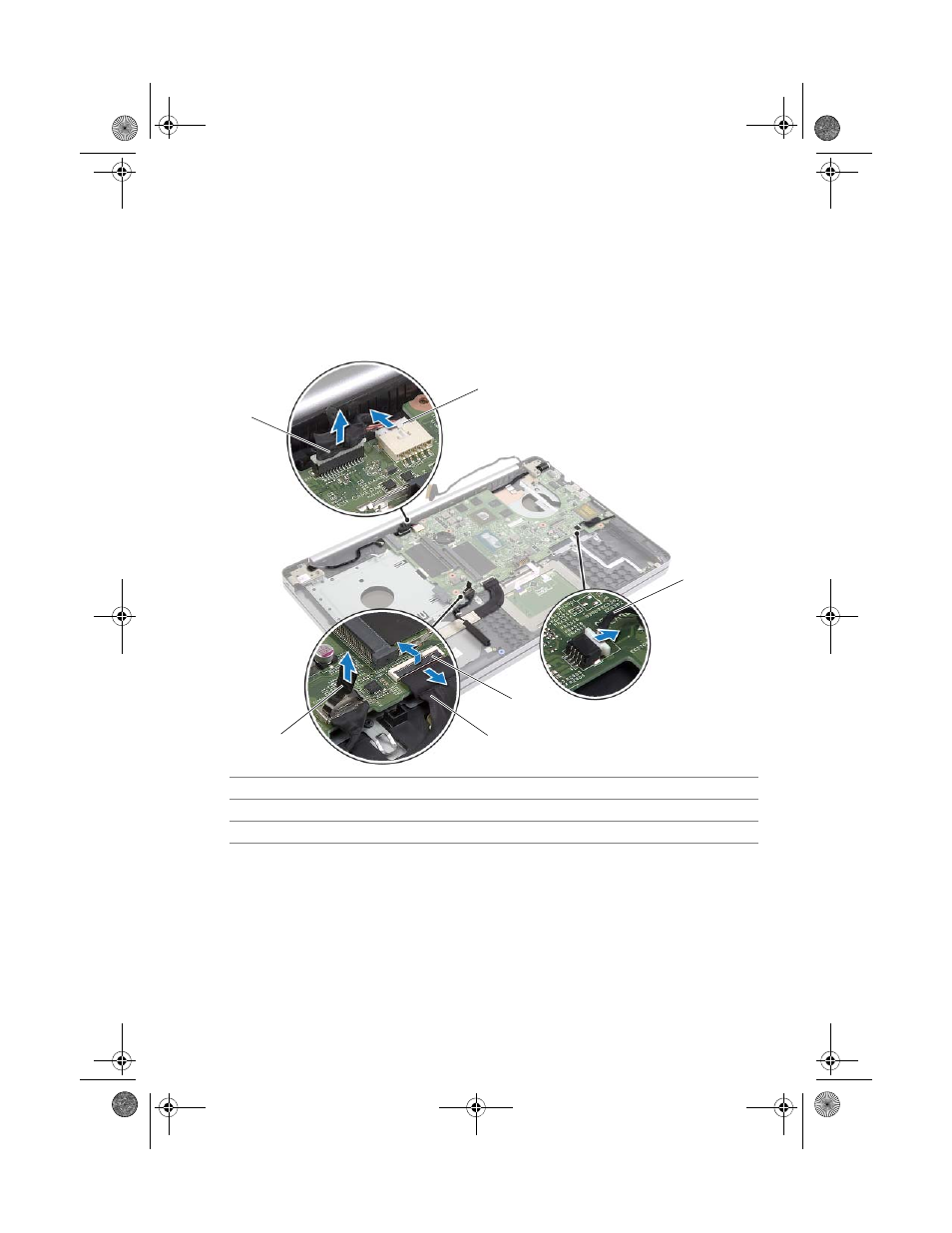

1 camera cable 2 power-adapter port cable
3 speaker cable 4 latch
5 USB-board cable 6 hard-drive cable
