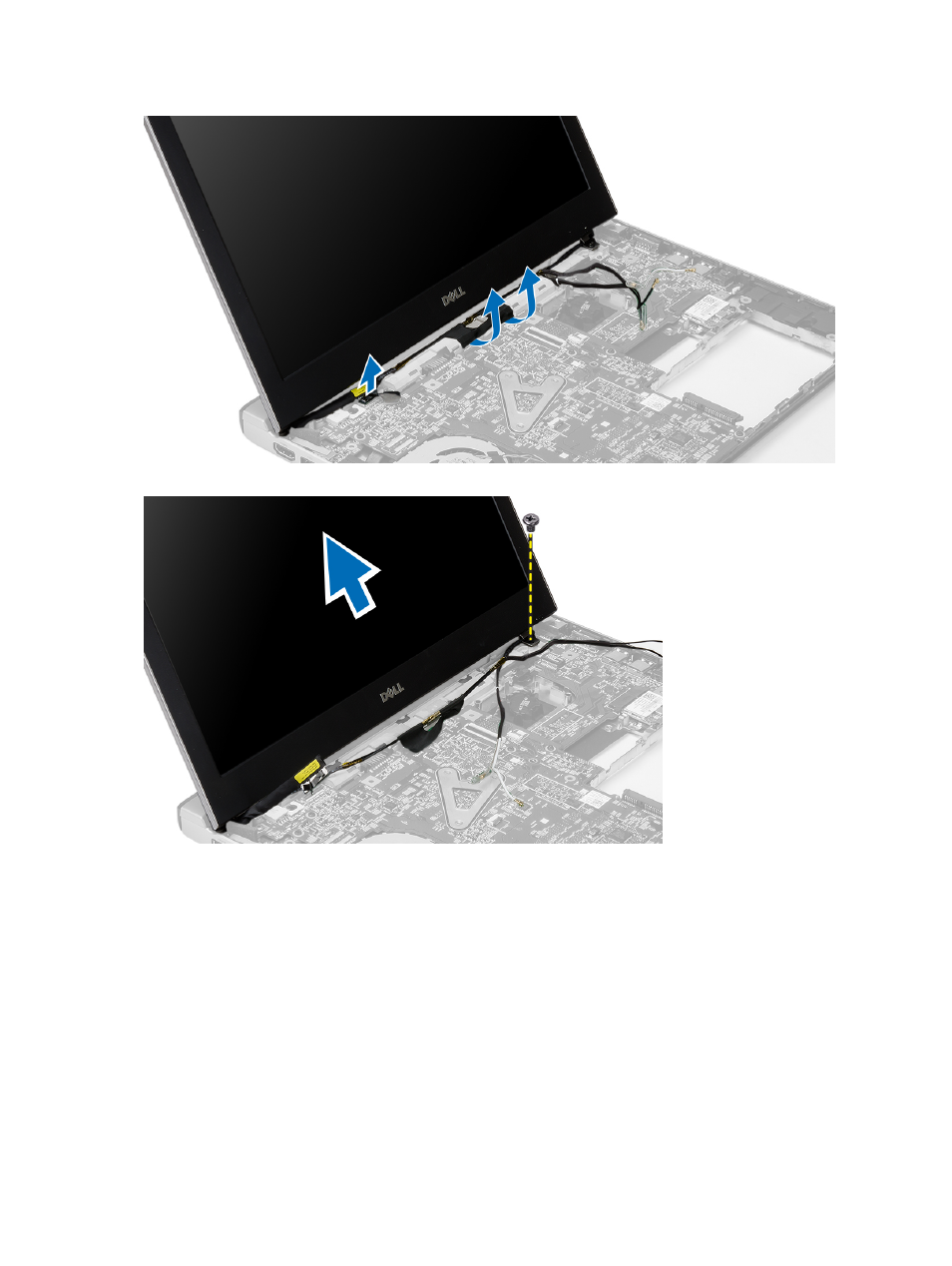

6. Remove the screw that secures the right hinge.
7. Carefully lift up the display assembly from the computer base.
Installing The Display Assembly
1. Align the display assembly to the computer base.
2. Tighten the screw to secure the right hinge in place.
3. Tighten the screws to secure the display assembly to the bottom base chassis.
4. Connect the display cable to the connector on the system board.
5. Route the WLAN cable in its routing channel and connect the cable in the respective modules.
6. Install:
a) palmrest
