Dell Latitude E6430s (Mid 2012) - Manual (Page 18)

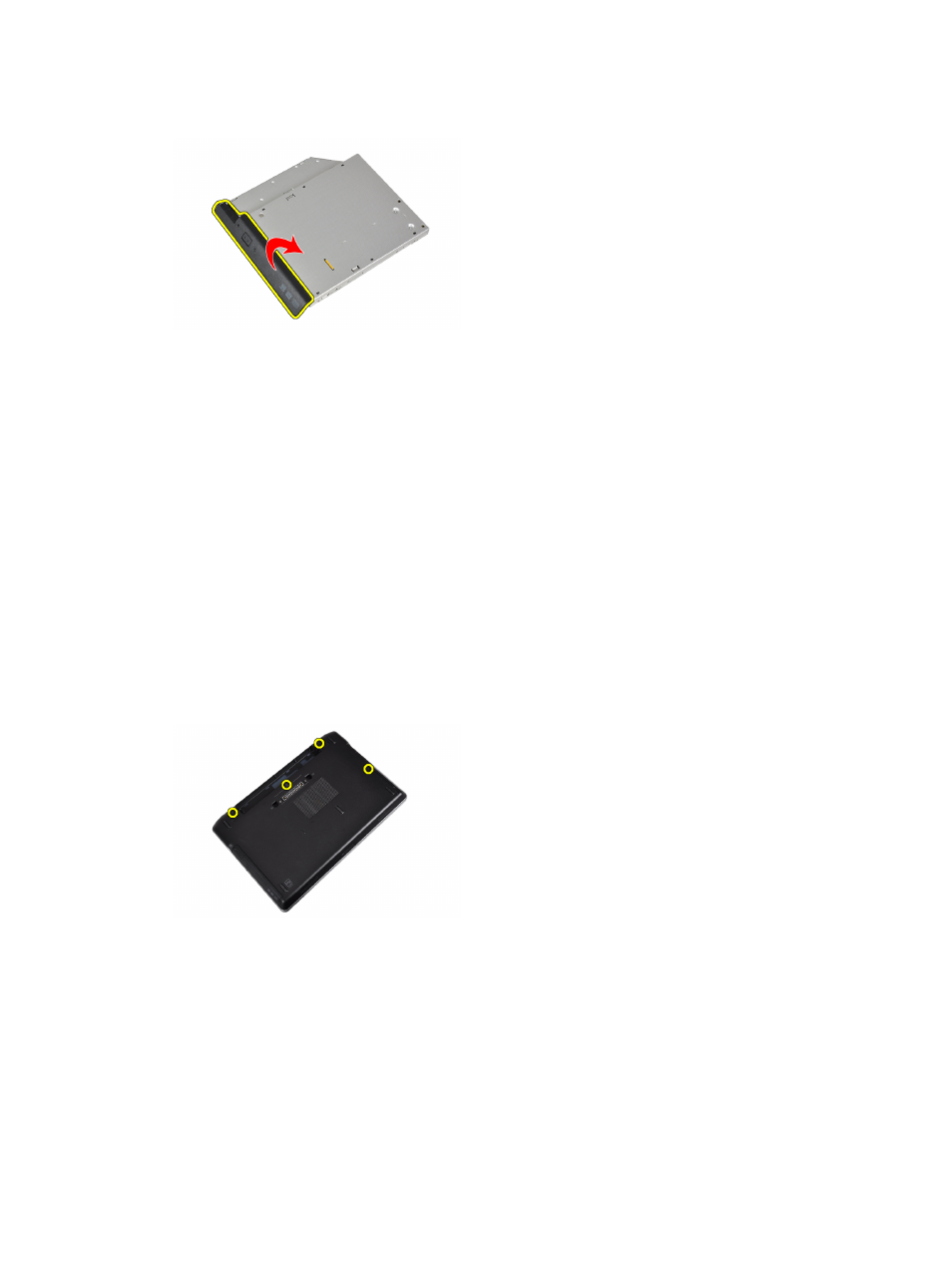

9. Pull and remove the drive caddy away from the optical drive.
Installing the Optical Drive
1. Secure the optical drive caddy to the optical drive.
2. Secure the drive-latch bracket to the optical drive.
3. Tighten the screw to secure the optical-drive latch to the optical drive.
4. Secure the drive latch to the optical drive.
5. Tighten the screw to secure the optical drive latch.
6. Slide the optical drive into its slot.
7. Flip the computer, and push in the eject handle to secure the optical drive.
8. Install the battery.
9. Follow the procedures in After Working Inside Your Computer .
Removing the Base Cover
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the battery.
3. Remove the screws that secure the base cover to the computer.
18
