Adding and Replacing Parts
183
3 Using a Phillips screwdriver, remove the screw securing the Bluetooth card
to the chassis.
NOTICE:
Be careful when removing the card to avoid damaging the card, card
cable, or surrounding components.
4 While grasping the card cable with one hand, use a plastic scribe to gently
pry and lift the Bluetooth card up and out of the communications card
bay
.
5 Disconnect the card from the cable and remove the card from the
computer.
To replace the card:
1 Connect the Bluetooth card to the card cable.
2 Slide the card under the metal clips into the communications card bay.
3 Tighten the captive screw to secure the card in the card carrier.

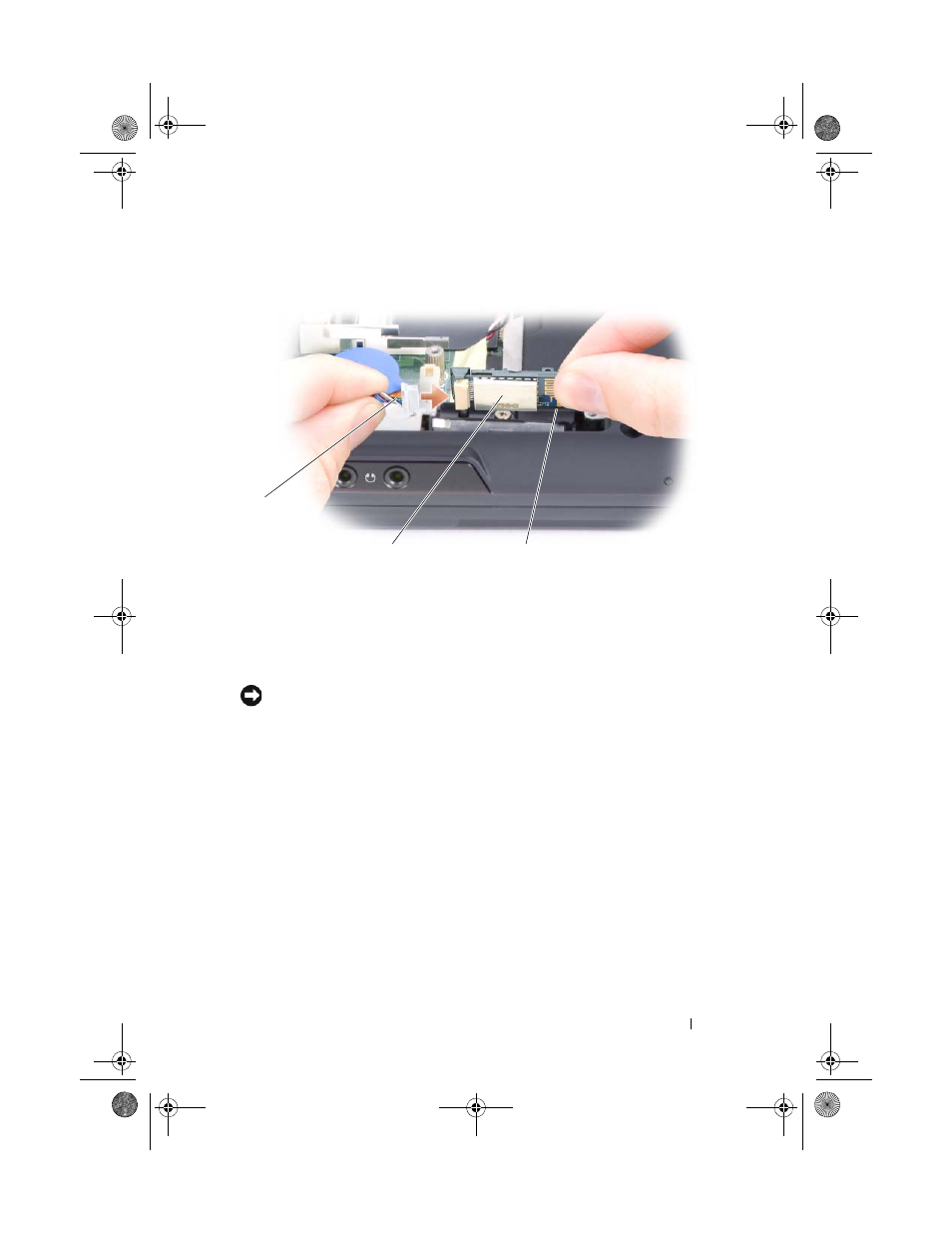

1 card cable 2 card 3 metal tab
3 2
1
