Cable Routing Procedures for Dell™ PowerEdge™ R310 & R410 Systems
Page 9

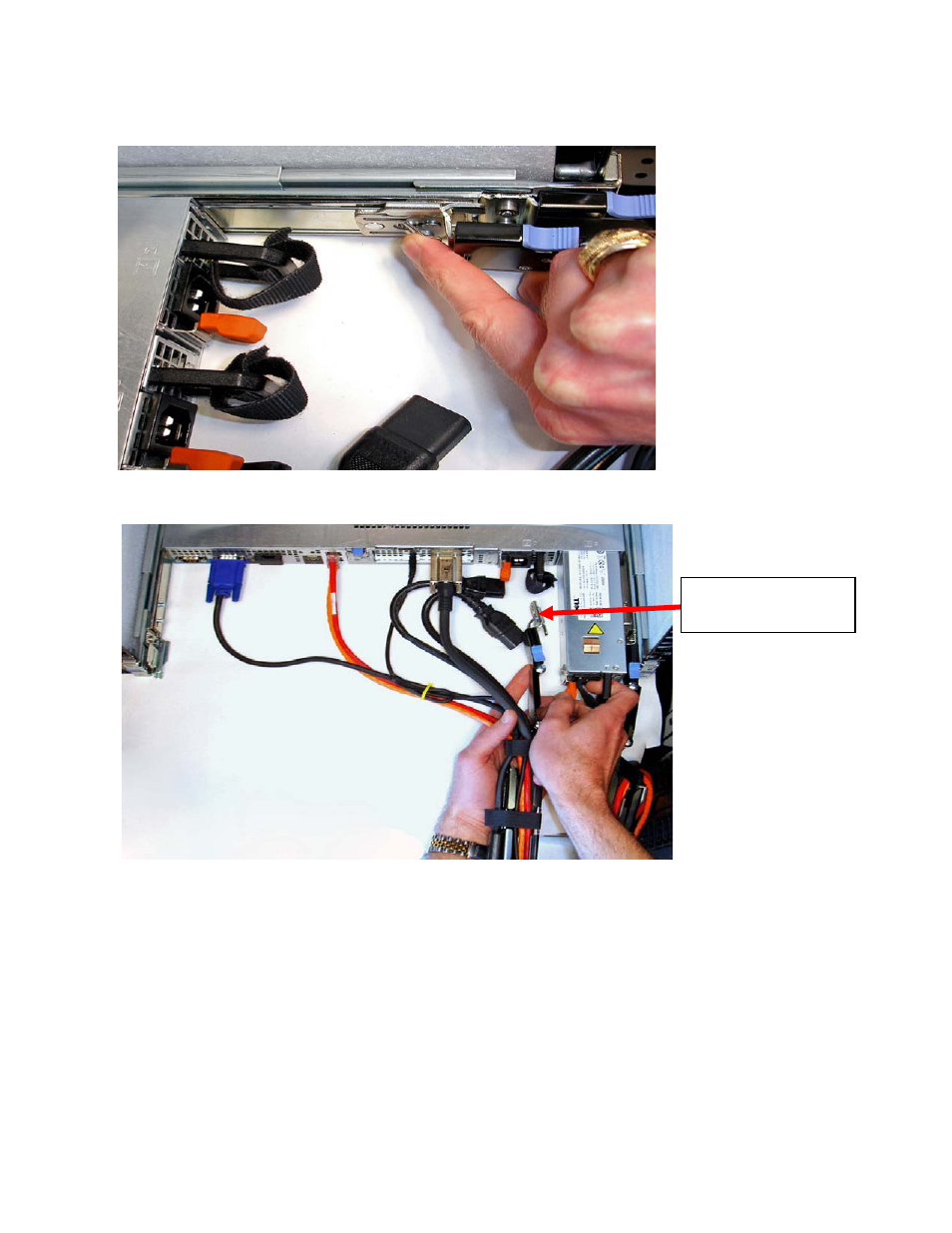

Figure 10: Disconnecting the Inner CMA Attachment Bracket
Figure 11: Replacing the Outer Power Supply
Section 4: Cabling a PowerEdge™ R310 or R410 System Installed in Static
Rails
NOTE: The CMA is compatible with the sliding rails only, not the static rails.
1. Follow the instructions contained in the Rack Installation Instructions found in the static rail kit
to install the server into a two-post or four-post rack.
2. Install the hook and loop straps provided in the rail kit through the slots in the rear brackets of
the rails as described in the Rack Installation Instructions .
Disconnected inner
CMA bracket
