Screw identification and tightening, Figure 2, Main battery assembly removal – Dell Latitude L400 User Manual
Page 9: Figure 3, Screw identification

suppport.dell.com
Dell Latitude L400 Service Manual
3

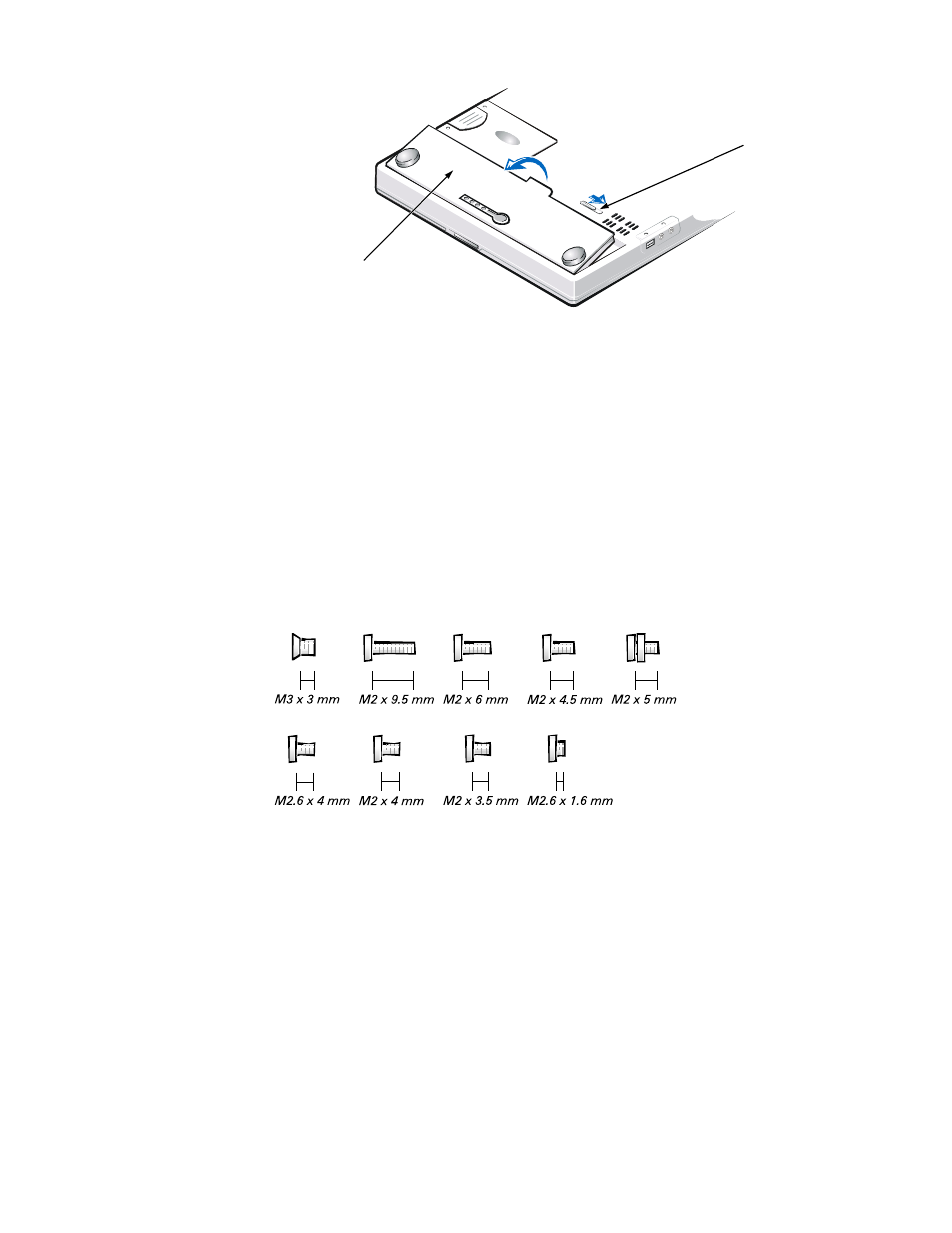

Figure 2. Main Battery Assembly Removal
9. Ground yourself by touching the unpainted metal surface of an I/O
connector on the back of the computer.
NOTICE: While you work, periodically touch the I/O panel to
dissipate any static electricity that might harm components.
Screw Identification and Tightening
The illustrations in the following removal procedures provide lengths of the
correct screws for each procedure. Figure 3 shows examples. Match the actual
screw to the illustration to check for correct length.
Figure 3. Screw Identification
NOTICE: When reinstalling a screw, you must use a screw of the
correct length. Otherwise, you could damage the hardware. Make
sure that the screw is properly aligned with its corresponding hole,
and avoid overtightening.
battery
battery latch
