Page 35

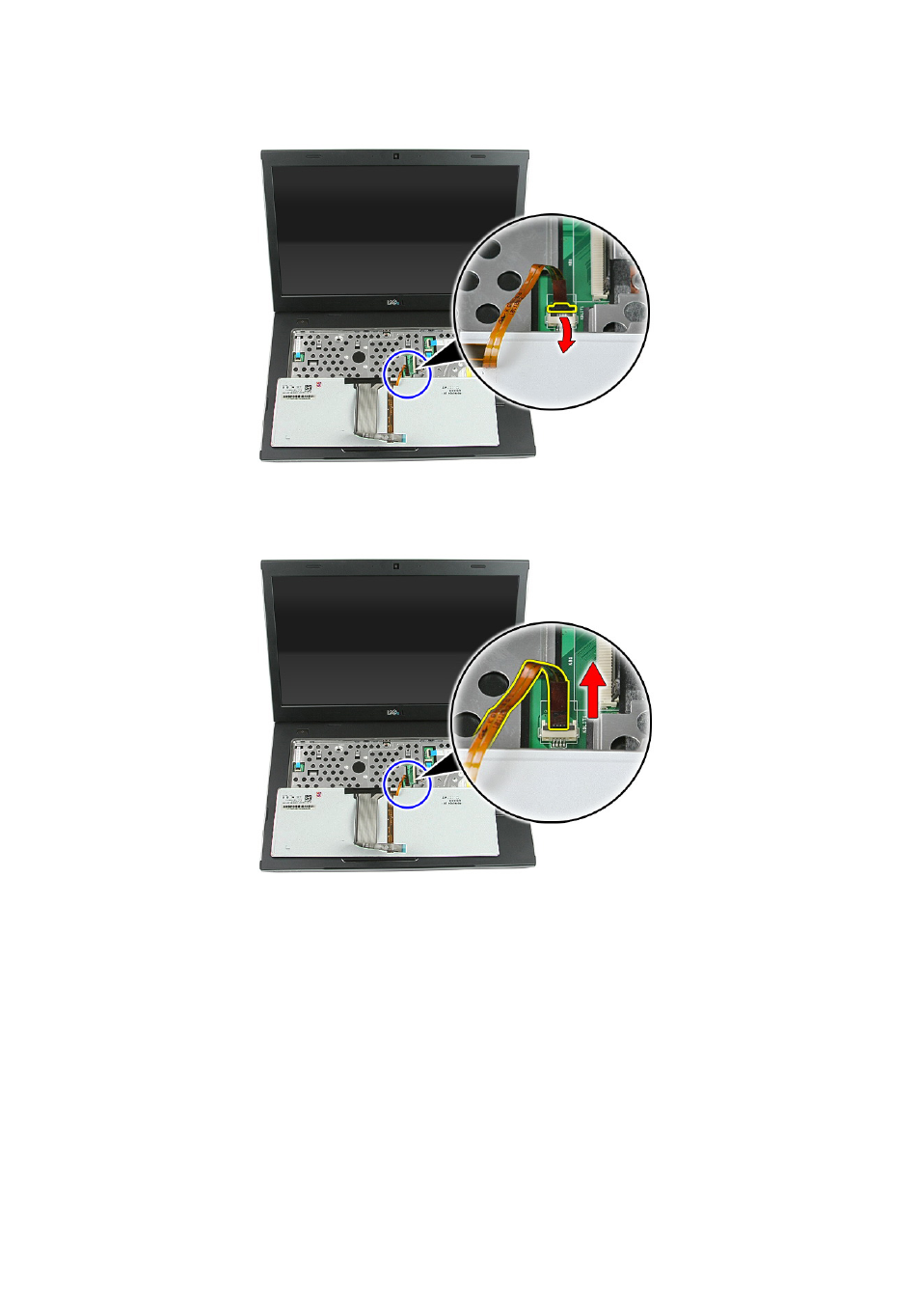

7. If your computer comes with a backlit keyboard, open the keyboard
backlight cable securing clip.
8. If your computer comes with a backlit keyboard, disconnect the keyboard
backlight cable.
Installing The Keyboard
1. Connect the keyboard data cable to the back of the keyboard.
2. Connect the keyboard data cable to the system board.
3. If your computer comes with a backlit keyboard, connect the keyboard
backlight cable.
4. Install the
.
After Working Inside Your Computer
35
