5. power button
6. eSATA/USB 2.0 connector
7. powered USB 3.0 connector
8. volume control buttons
9. wireless switch
10. optical drive
11. ExpressCard slot
12. fingerprint reader (optional)
13. contactless smart card reader
(optional)
14. Secure Digital (SD) memory-card
reader
15. touchpad buttons (2)
16. touchpad
17. trackstick buttons (3)
18. trackstick
19. keyboard
20. device status lights

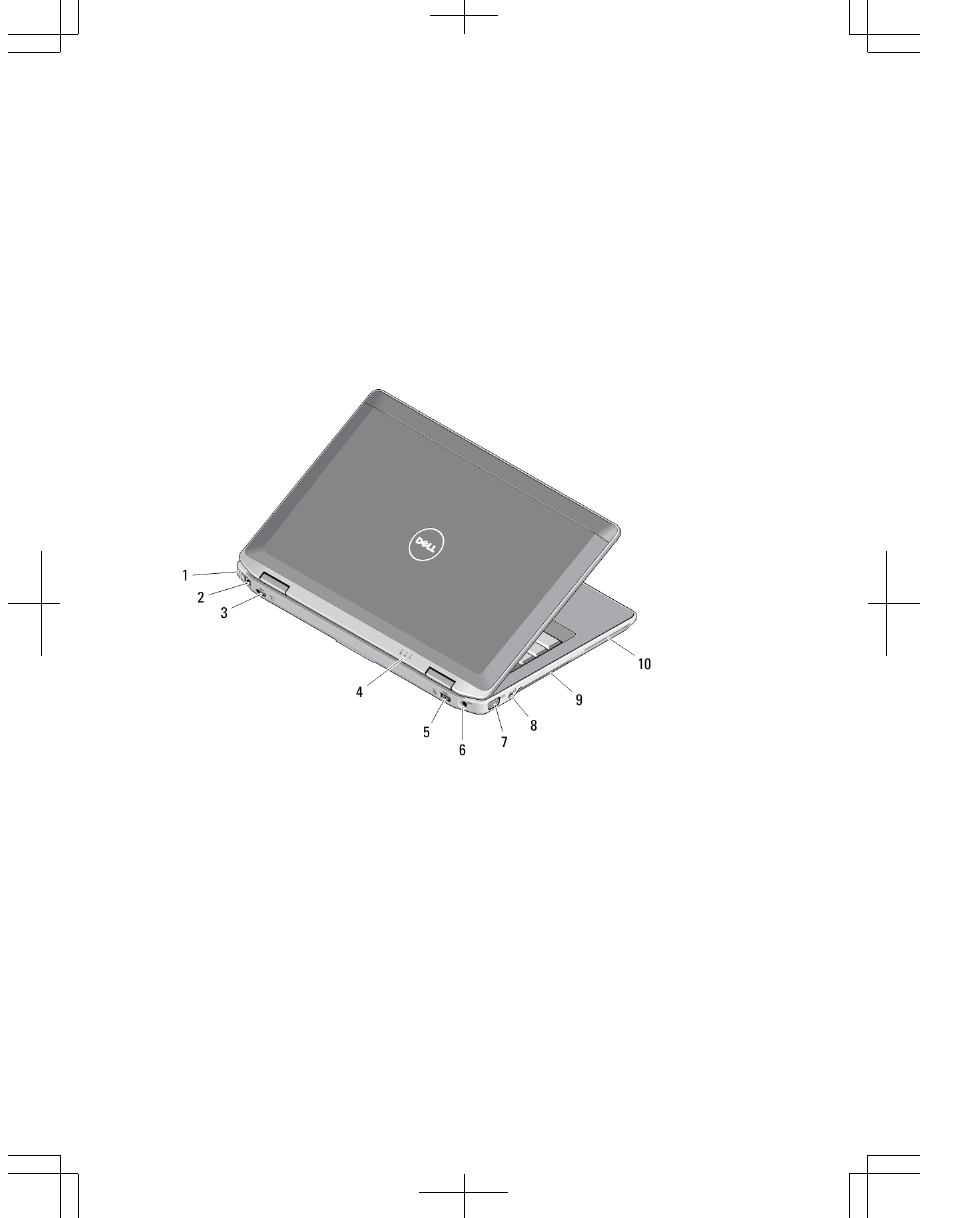

Figure 2. Back view
1. security cable slot
2. network connector
3. mini HDMI connector
4. device status lights
5. USB 3.0 connector
6. power connector 7. VGA connector
8. audio/microphone combo
connector
9. cooling vents
10. smart card slot (optional)
