Dell PowerVault DL2000 Remote Office Backup Strategy
Page 6
Configure the Magnetic Library on Replicated Disks
Step-by-step instructions are available in
Books Online at
http://documentation.commvault.com/commvault/release_7_0_0/books_online_1/english_us/featu
res/magnetic_library/replicated_mag_lib_config.htm
.
IMPORTANT: Always check the Enable replication option, as shown in Figure 2, to automatically create
a DDR replication pair.
NOTE: DDR does not support Replicated Disk Libraries where the primary disk target (read/write path) is
a network share. The primary disk target has to be a dedicated local volume.

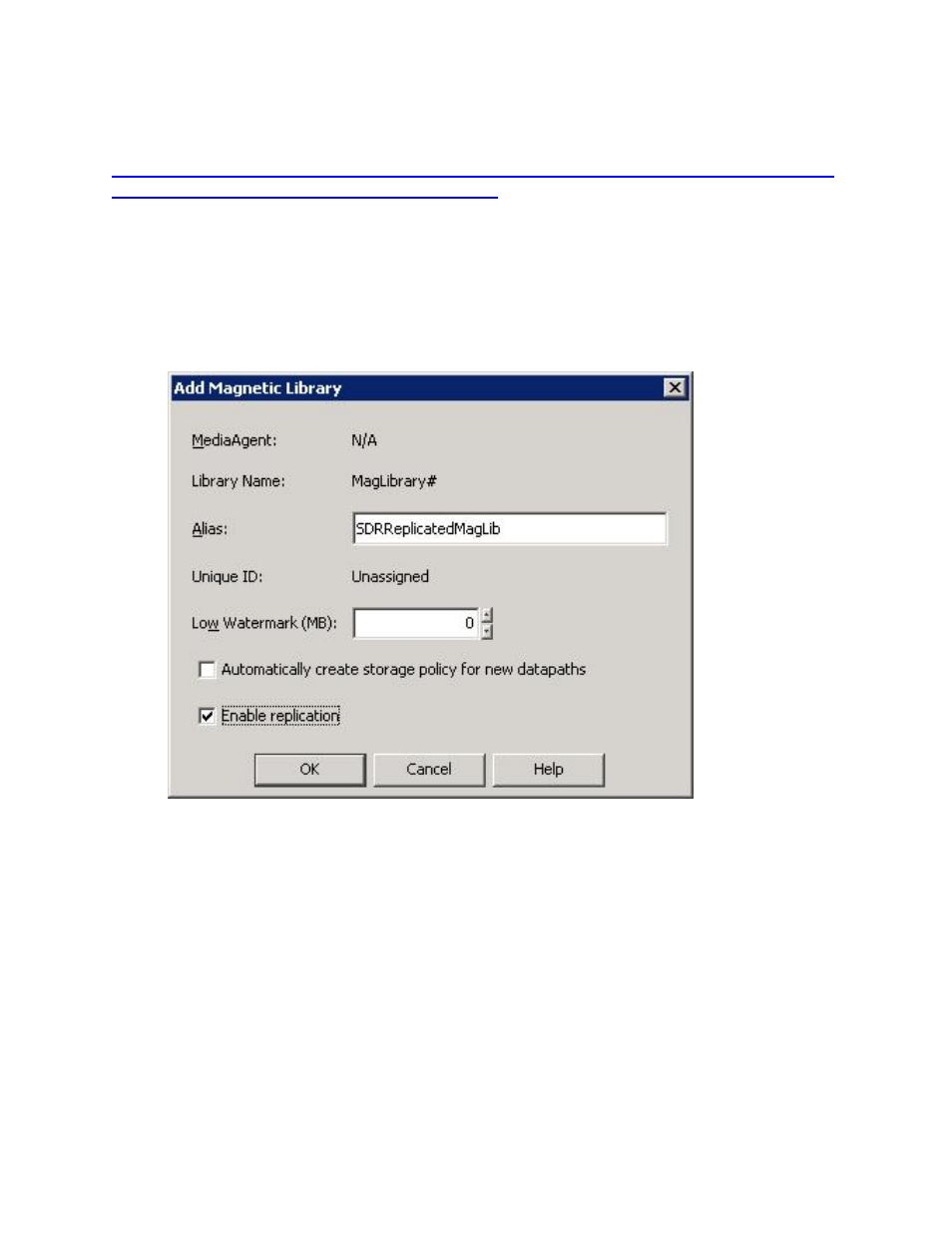

FIGURE 2: ENABLE REPLICATION ON THE REPLICATED DISK LIBRARY
The DDR Simple Replication Pair shown in
Figure 3 has the primary mount path of the replicated disk
library as its source and the secondary mount path as its target.
