Installing the wlan card – Dell Latitude E6430 ATG (Mid 2012) User Manual
Page 24
3.

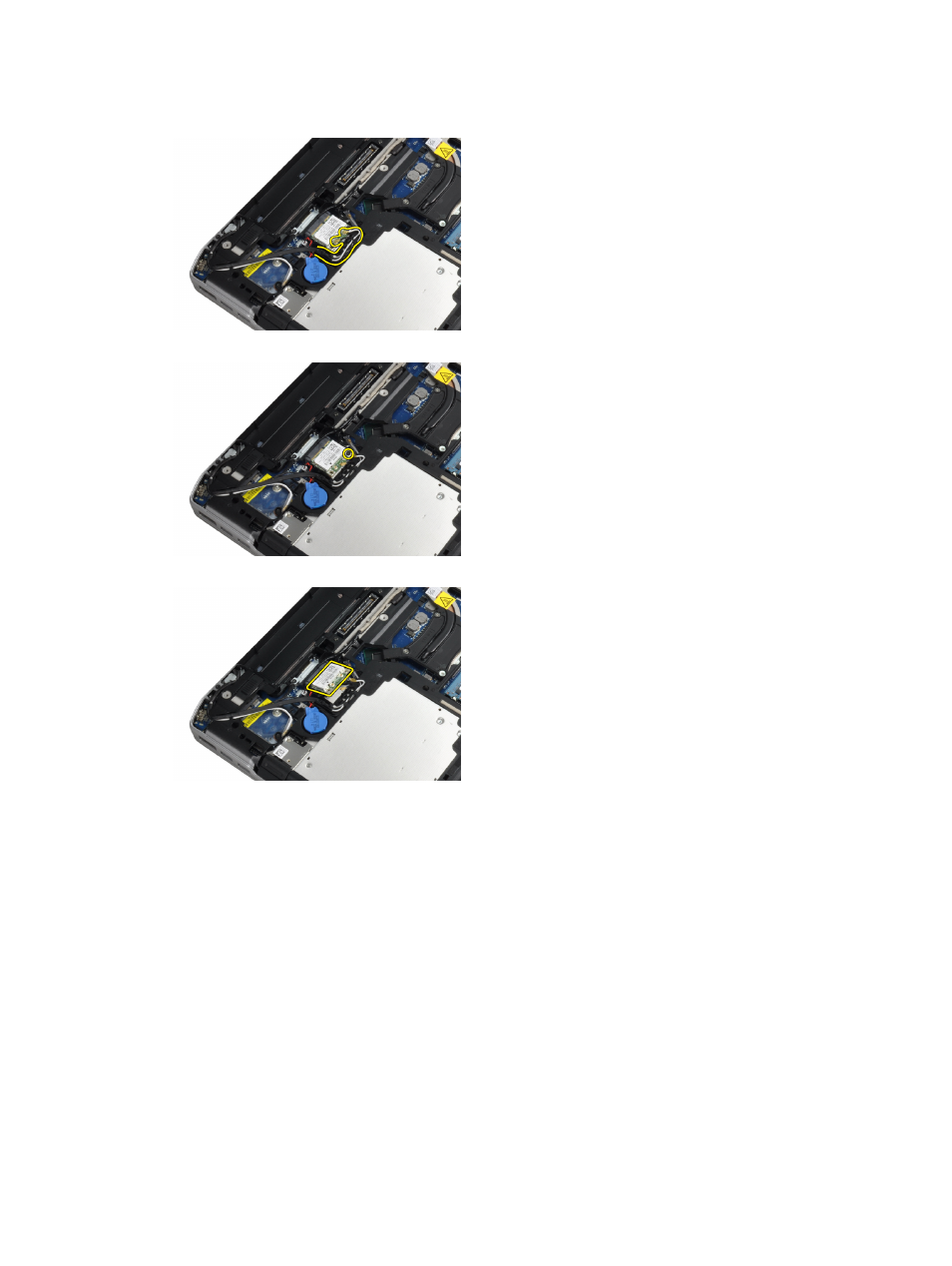

Disconnect the antenna cables from the WLAN card.
4.
Remove the screw that secures the WLAN card to the computer.
5.
Remove the WLAN card from its slot on the system board.
Installing the WLAN Card
1.
Insert the WLAN card into its connector at a 45–degree angle into its slot.
2.
Connect the antenna cables to their respective connectors marked on the WLAN card.
3.
Tighten the screw to secure the WLAN card to the computer.
4.
Install:
a) base cover
b) battery
5.
Follow the procedures in
After Working Inside Your Computer
.
24
