Installing the Camera Module

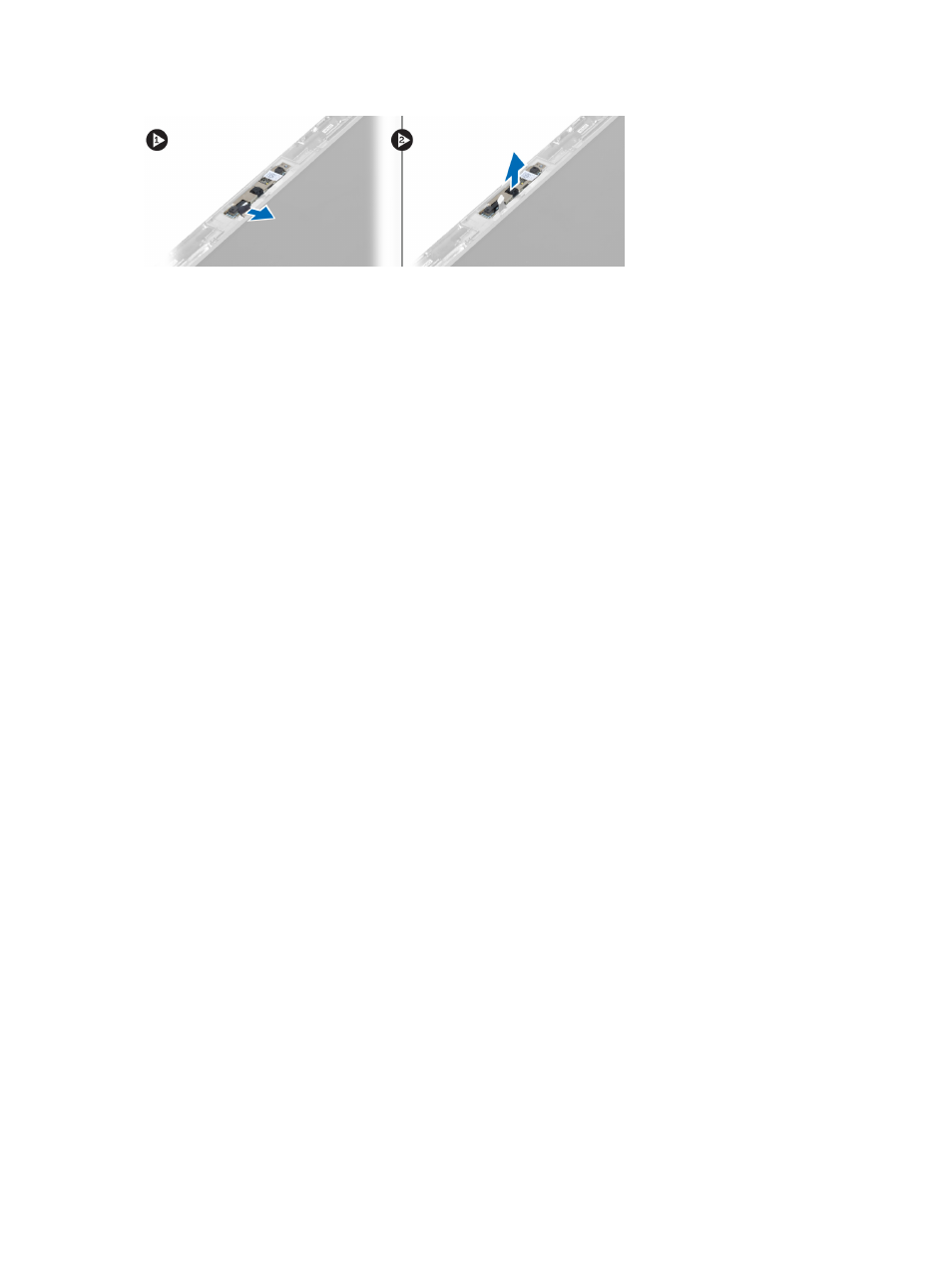

1. Connect the camera cable to the camera module and place the camera module to its original position on the
display assembly.
2. Install :
a) display bezel
b) display assembly
c) display hinge cover
d) battery
e) palmrest
f) keyboard
g) access panel
3. Follow the procedures in After Working Inside Your Computer .
Removing the Fan
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) access panel
b) keyboard
c) palmrest
d) battery
e) display hinge cover
f) display assembly
3. Remove the screw that secures the fan to the computer. Then, lift the fan and disconnect the fan cable from the
system board.
