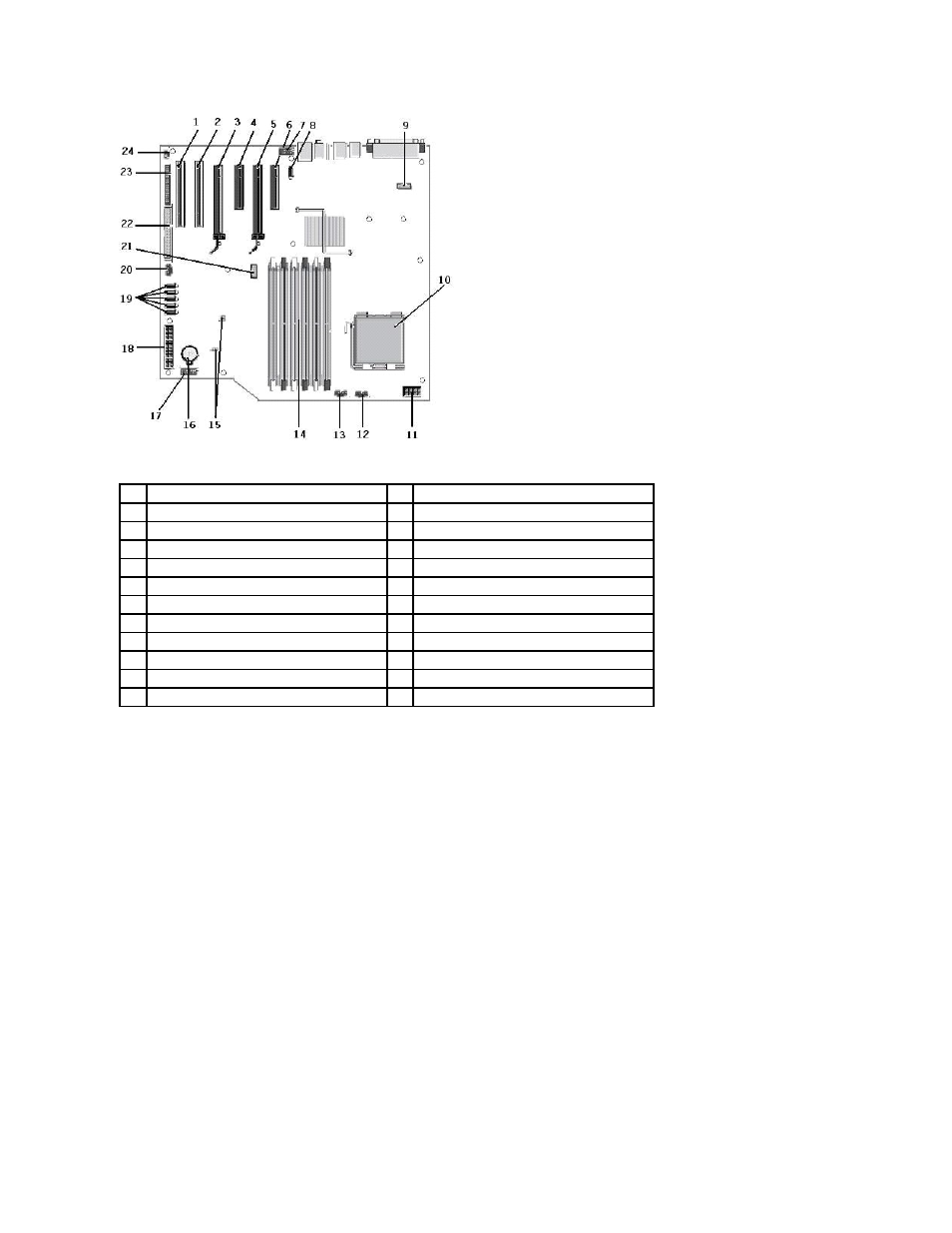

1

PCI Card Slot (Slot 6)

2

PCI Card Slot (Slot 5)

3

PCIe x16 (Slot 4)

4

PCIe x4 (Slot 3)

5

PCIe x16 (Slot 2)

6

PCIe x4 (Slot 1)

7

Audio Front Panel (FP_AUDIO)

8

Internal USB (USB_1)

9

LPC_DEBUG

10

Processor Connector

11

CPU Power Connector (POWER_CPU)

12

Front Bezel Fan (FAN_Front)

13

Front Cage Fan (FAN_CCAG)

14

Memory Module (RAM) Connectors (DIMM_1-6)

15

Jumpers (PSWD & RTCRTS)

16

Battery Socket (CMOS Battery)

17

Internal USB Socket (for Flexbay Card Reader)

18

Main Power Connector

19

SATA Connectors (SATA_0-4)

20

HDD Fan (FAN_HDD)

21

Serial Connector (SERIAL2)

22

FDD Connector

23

Front Panel Connector (FRONTPANEL)

24

Chassis Intrusion Connector (INTRUDER)
