9. Lift the palm rest and remove it from the computer.
Replacing the Palm Rest
1. Align the palm rest with the computer base and gently snap it into place.
2. Reconnect the touch-pad connector and the standby switch connector to the system board.
3. Tighten the captive screw on the palm rest.
4. Turn the computer upside-down, and replace the eleven M2.5 x 8-mm screws on the bottom of the computer.
5. Replace the optical drive (see Replacing an Optical Drive ).
6. Turn the computer top-side up and replace the display assembly (see Replacing the Display Assembly ).
7. Replace the keyboard (see Replacing the Keyboard ).
8. Replace the hinge cover (see Replacing the Hinge Cover ).
Back to Contents Page

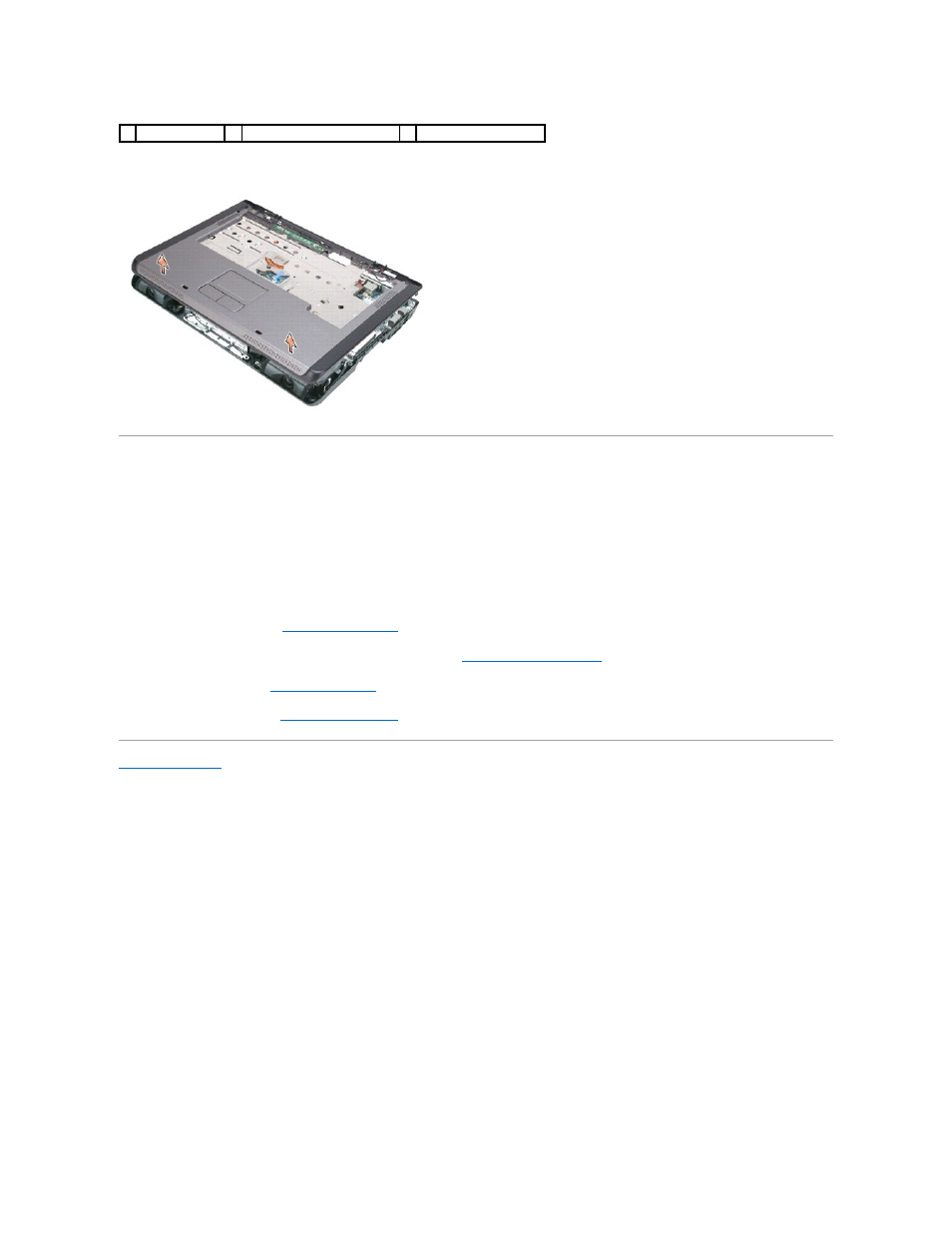

1 captive screw 2 standby switch connector 3 touch pad connector
