Cable Routing Procedures for Dell™ PowerEdge™ R415 Systems
Page 5

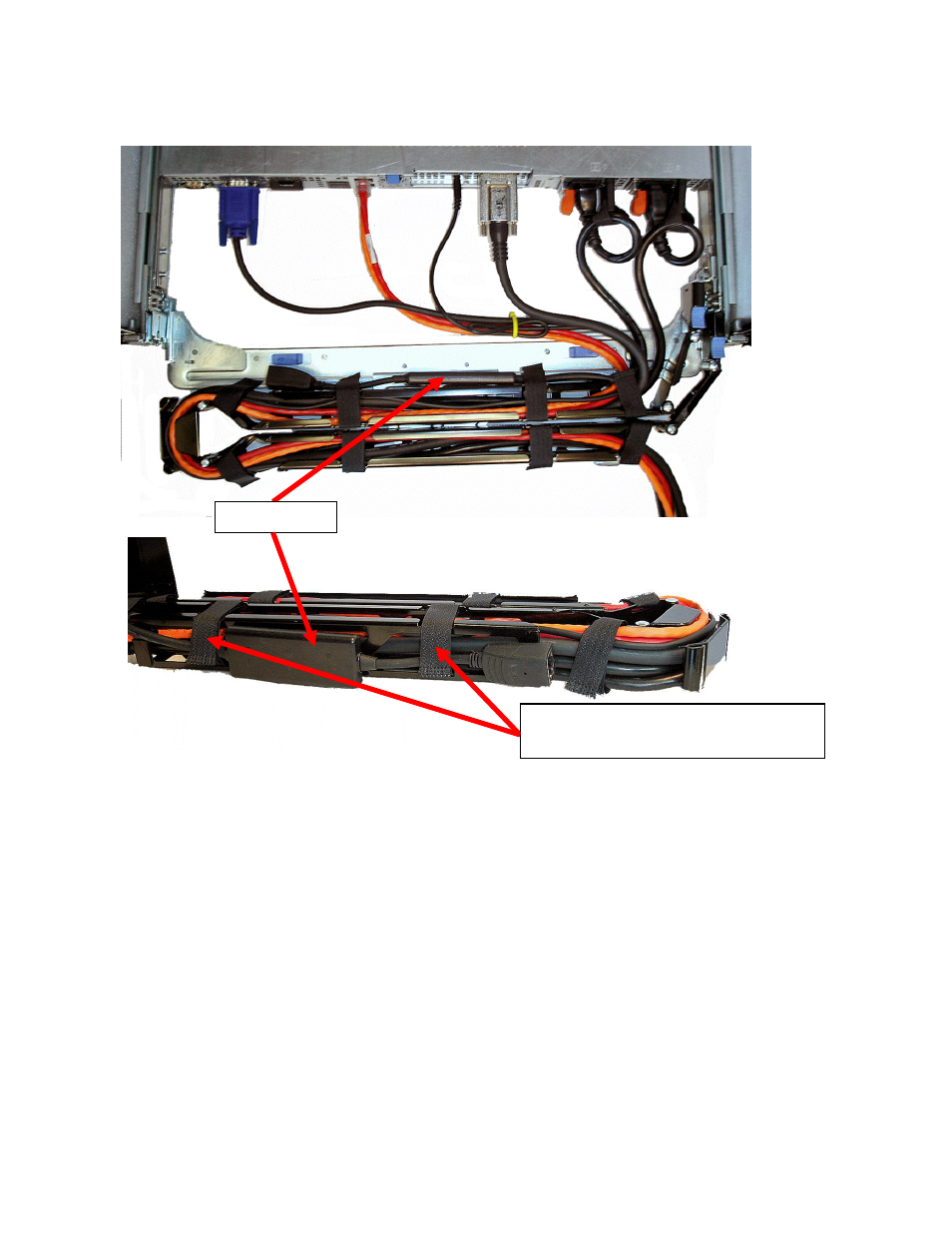

Figure 5: Attaching the KVM Dongle to the CMA Basket
4. Once you have routed all the cables through the CMA, dress the cable slack between the back of
the system and the entrance of the CMA using the tie wraps (shown in yellow in all illustrations)
provided in the CMA kit.
5. Clip off the excess length of material from the tie wraps. Make sure that the heads of the tie wraps
are positioned so as to avoid interference with adjacent systems. Return the CMA to the closed
(retracted) position.
6. Extend the system out of the rack to verify that there is sufficient slack in the cables on both ends
of the CMA.
See Figure 6 for an example of a completed left-side mounted CMA installation.
Use the hook and loop straps on the
CMA basket to secure the KVM dongle.
KVM Dongle
