Configuring the Router
3-7
■
Change the scan delay (see
)
■
Enable and disable the alarm (see
■
Restore the default settings (see
)
Selecting the Topology
You should be sure that the router’s topology setting is correct for your configuration. You
can set the topology to:
■
LOOP—use this option for all configurations except when the router is connected to a
switch F-port. See
Installation Configuration Examples on page 2-4
.
■
POINT-TO-POINT—use this option only when you connect the router to a switch F-
port. See
Installation Configuration Examples on page 2-4
.

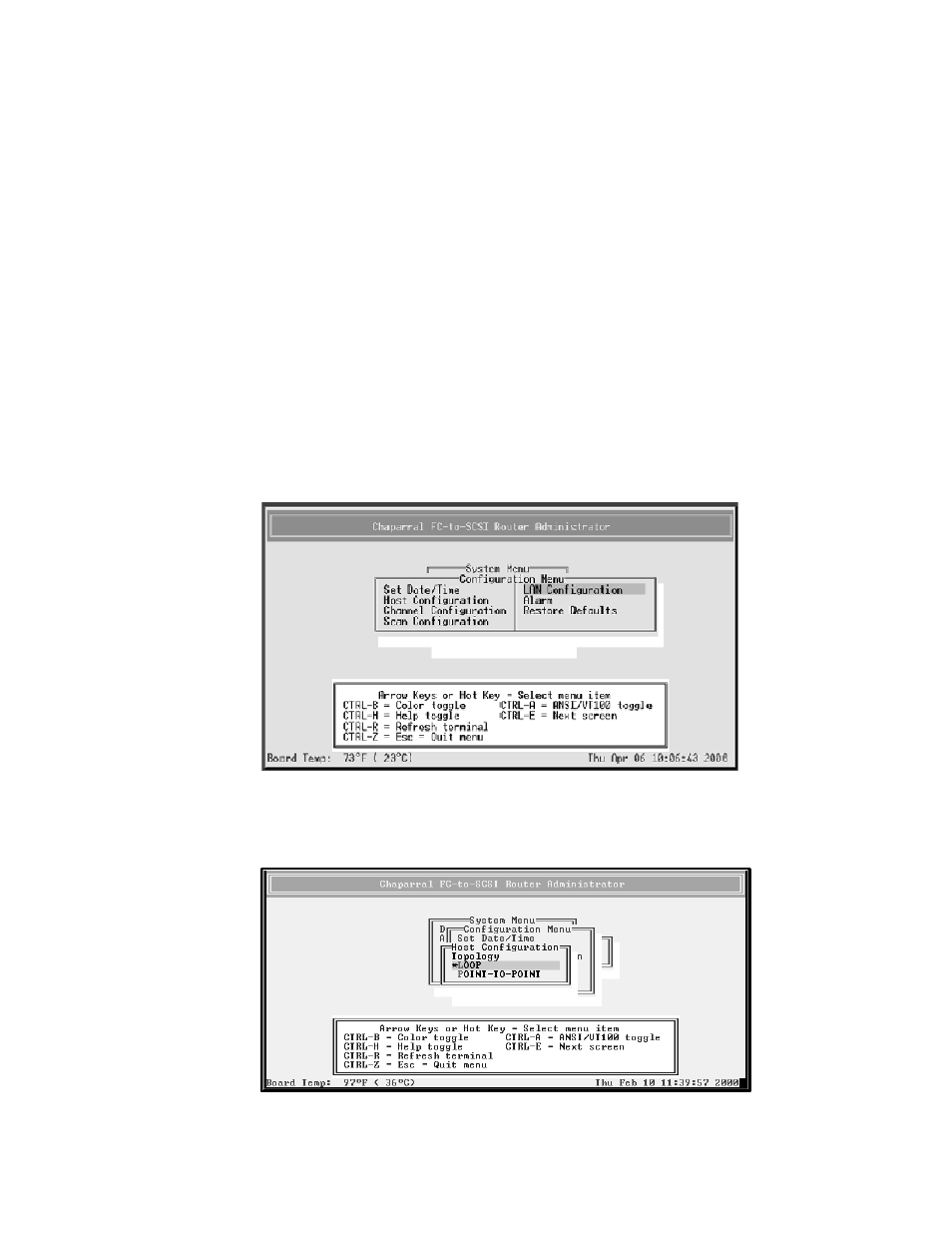

To select the topology:
1
From the System Menu, select Configuration Menu and press Enter.
The Configuration Menu screen displays.
2
Select Host Configuration and press Enter.
The Host Configuration screen displays.
