VFS113 Rack/Desktop Model User’s Guide
2-4
Installation Configuration Examples
You can install the router in a variety of configurations to meet your needs. The examples
below show the most common installation configurations.
■
Simple loop with two devices on a SAN (FC-AL)

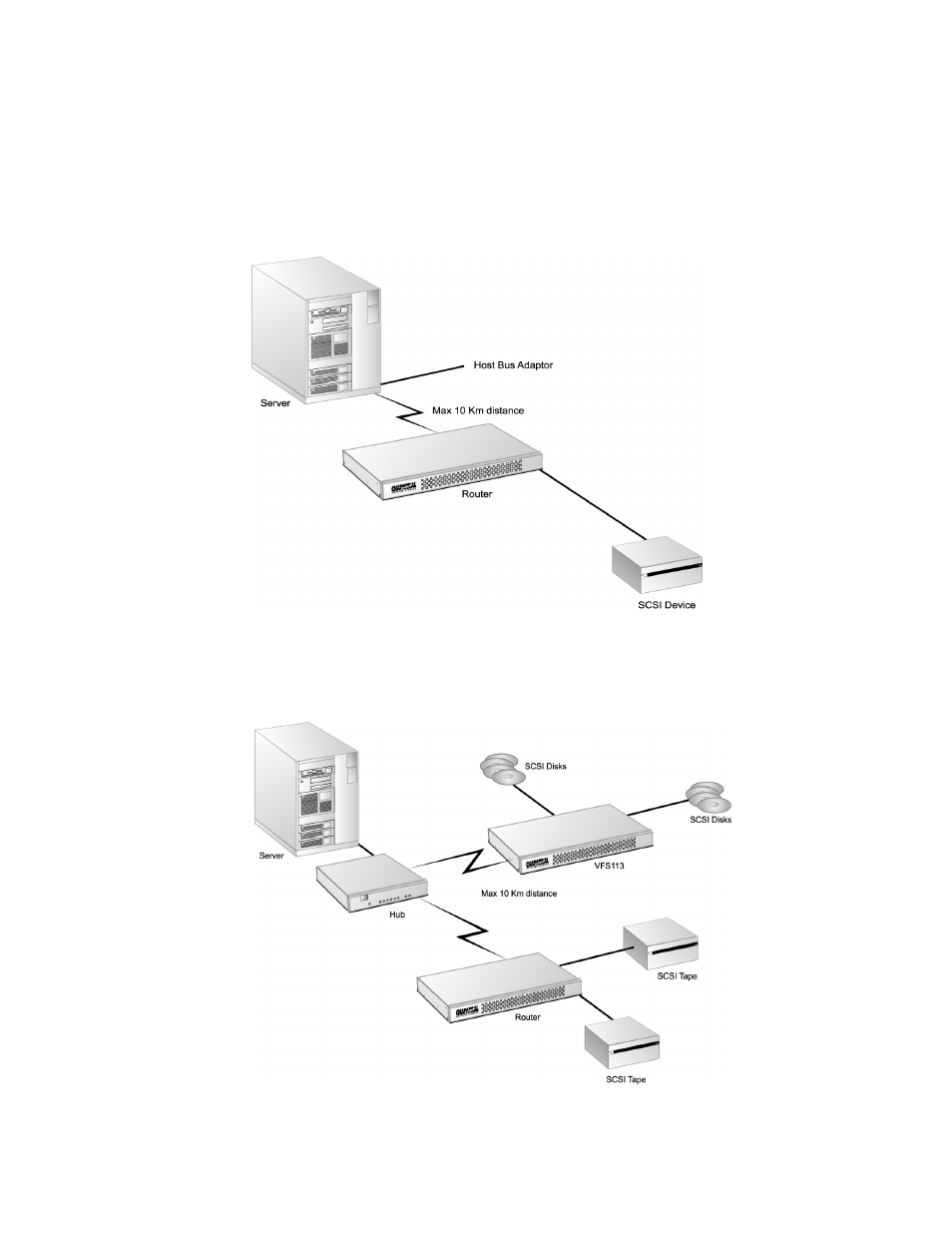

Figure 2-3. Simple loop configuration example
■ Single server on a SAN (FC-AL)
Figure 2-4. Single server configuration example
