Dell PowerVault MD3660i User Manual
Page 15

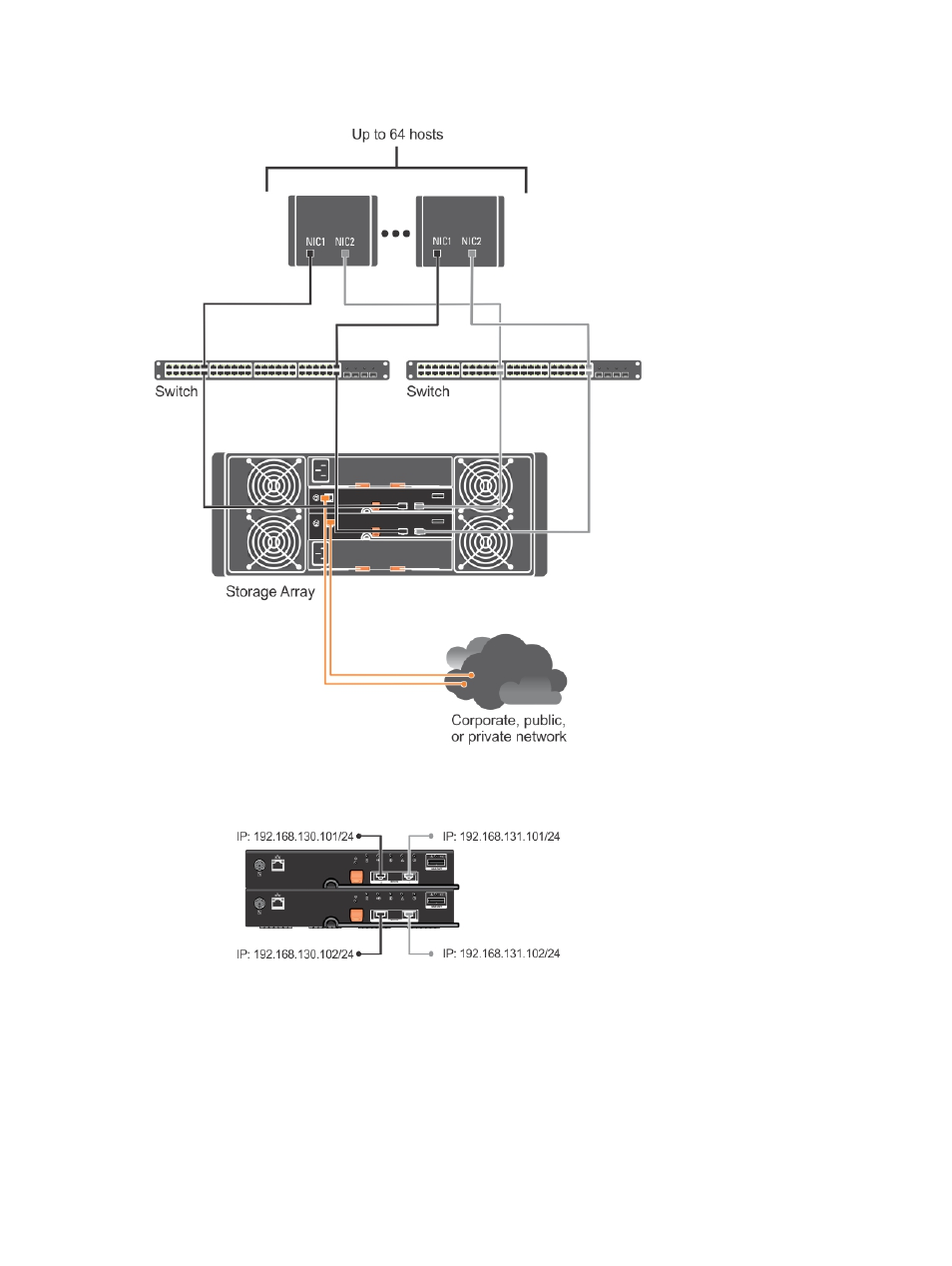

Figure 4. 64 Servers Connected to Two Controllers
The following figure shows up to 64 stand-alone servers attached (using multiple sessions) to a dual RAID controller
configuration through a network using a 1 Gbps to 10 Gbps aggregation scheme. The NICs on the servers are 1 Gbps
NICs and the uplink ports on the 1 Gbps switches are 10 Gbps. Hosts that have a second Ethernet connection to the
15
