PT1016 Pass-Through Module Quick Start Guide Page 9
and User Manual
1. Install the Pass-Through Module
Note: Computer equipment contains static-sensitive
components that may be damaged during
handling. Static precautions such as grounded
wrist straps are recommended during the
installation process.
1. Remove the pin cover from the connector pins at the back of
the pass-through module, as shown in Figure 1, Removing
the Pin Cover.

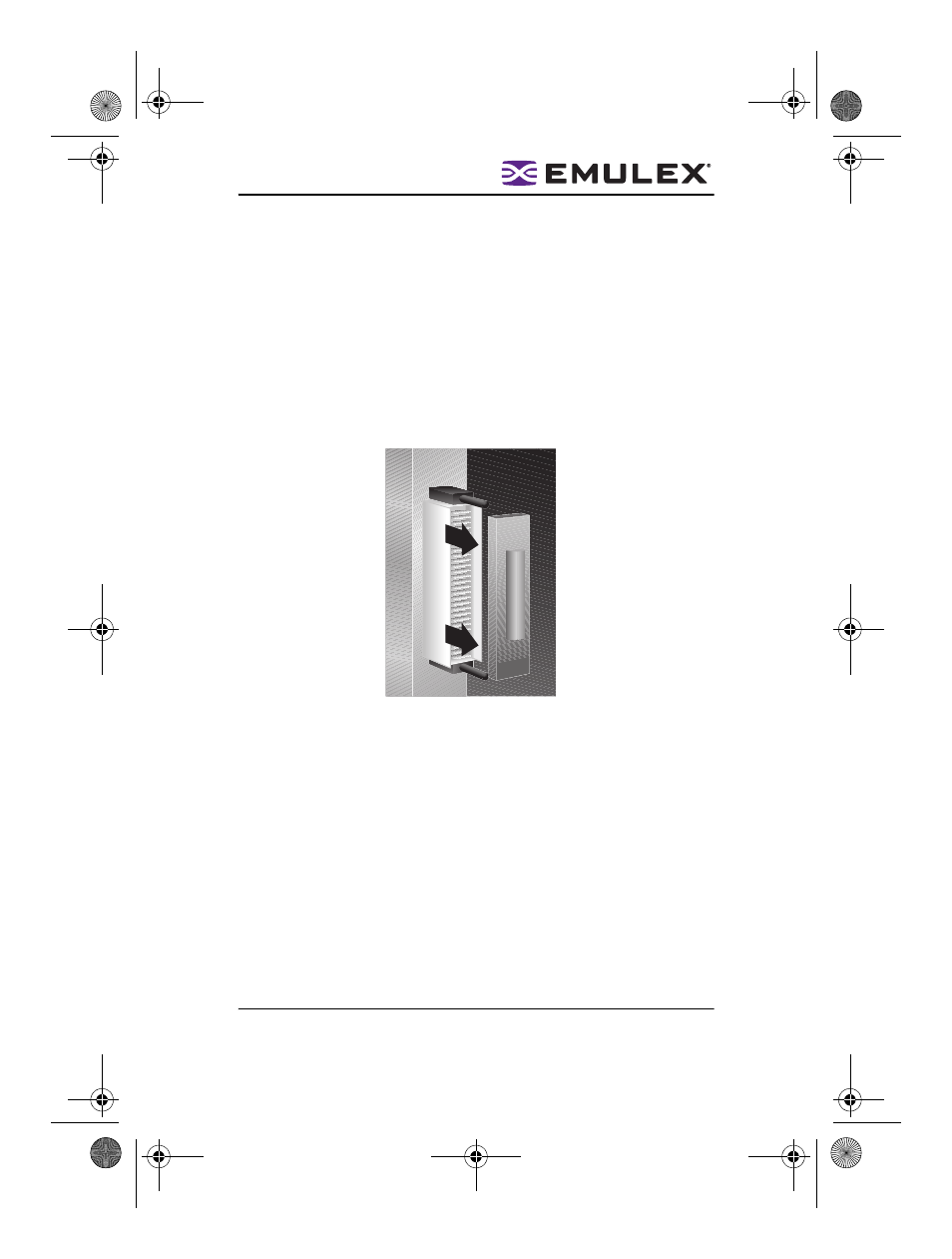

Figure 1. Removing the Pin Cover
2. Locate an empty module bay in the server.
3. If the selected bay contains a blank I/O module, remove it.
