Installation 5
2 Locate the Ethernet cable (supplied). Connect one end of the cable to the RJ-45 port on the EMP,
then connect the other end to the Settings port on the Network Management Card (see Figure 4).

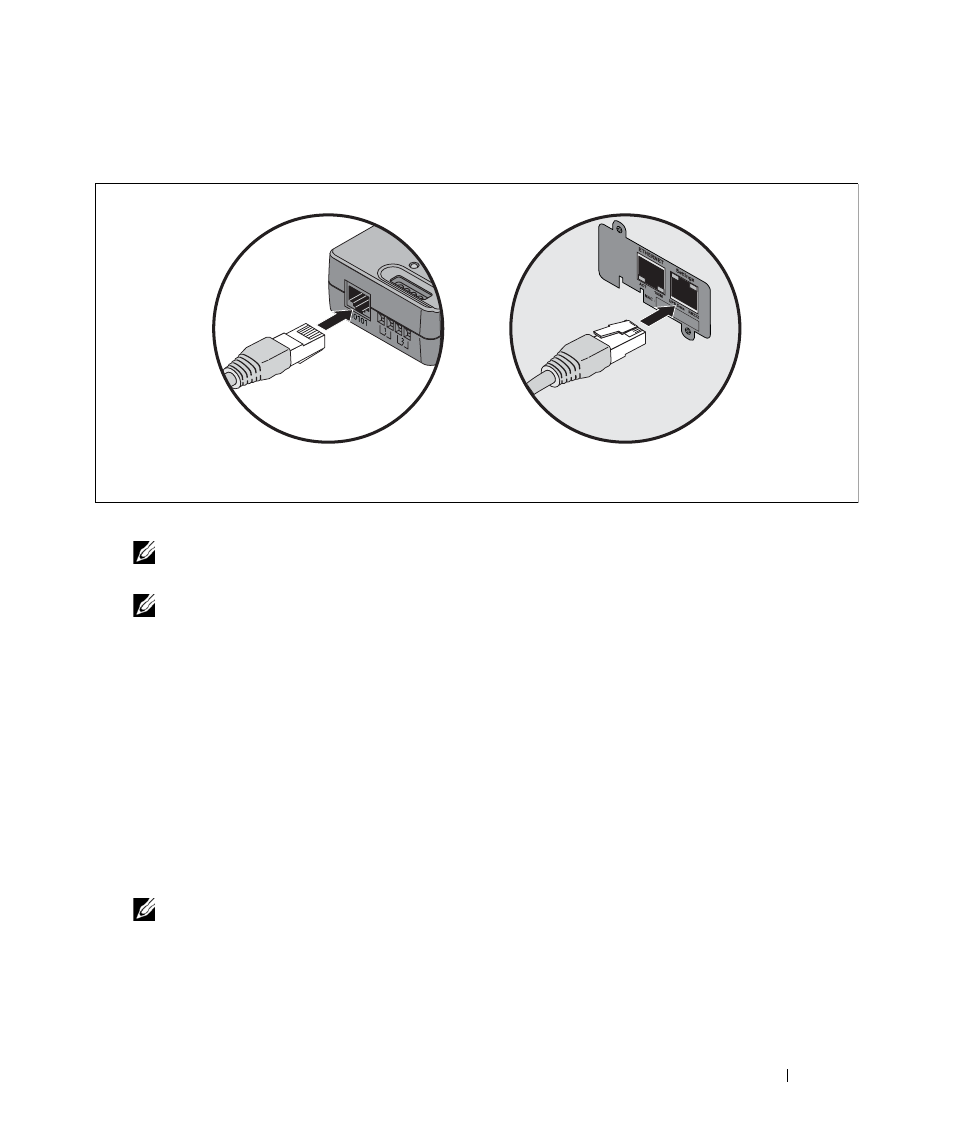

Figure 4. Connecting the Cable
NOTE: If the configuration cable is still attached to the Network Management Card, remove and store it for
future use.
NOTE: If the supplied cable is not long enough for your installation, you can use another Ethernet cable up to
a length of 10m (33 ft).
3 The EMP can be mounted to the wall or the rack post, or placed on the UPS.
• The EMP has a universal slot on the rear for easy mounting on a screw in any direction. Use the
supplied screw and anchor to mount the EMP.
• To mount the EMP to the rack post, attached one VELCRO ® fastener to the rail and the other
VELCRO fastener to the EMP. Press the two VELCRO strips together to secure the EMP to the
rail post.
4 Use the supplied tie wraps to secure the Ethernet cable out of the way as needed.
5 Verify that the Network Management Card has a network connection, is installed in a UPS, and the
UPS is plugged in and turned on. The EMP is automatically recognized by the Network Management
Card.
NOTE: If the Environment menu does not display on the menu bar, click your Web browser’s Refresh button to
update the page.
EMP Network Management Card
