e) hard drive
f) keyboard
g) palmrest
h) WLAN card

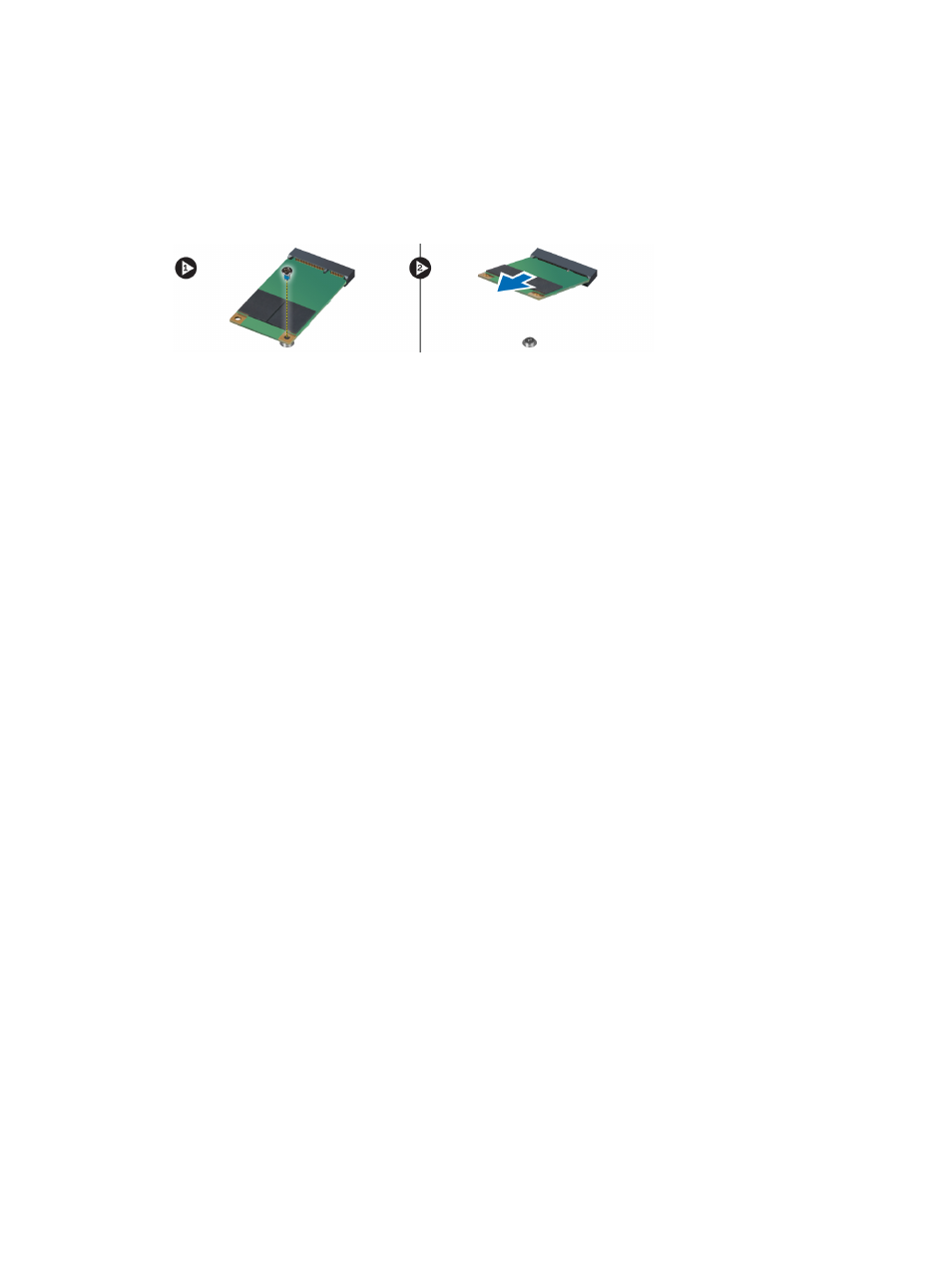

3. Remove the screw that secures the mini-SATA card to the system board. Slide the card from its connector on the
system board.
Installing the mini-SATA Card
1. Place the card into the mini-SATA slot.
2. Tighten the screw to secure the mini-SATA card to the computer.
3. Install the:
a) WLAN card
b) palmrest
c) keyboard
d) hard drive
e) optical drive
f) memory
g) base cover
h) battery
4. Follow the procedures in After Working Inside Your Computer
Removing the USB Daughter Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) memory
d) optical drive
e) hard drive
f) keyboard
g) palmrest
h) WLAN card
i) system board
j) mini-SATA
k) coin-cell battery
l) heat sink
m) processor
3. Flip the system board with the processor slot facing down.
