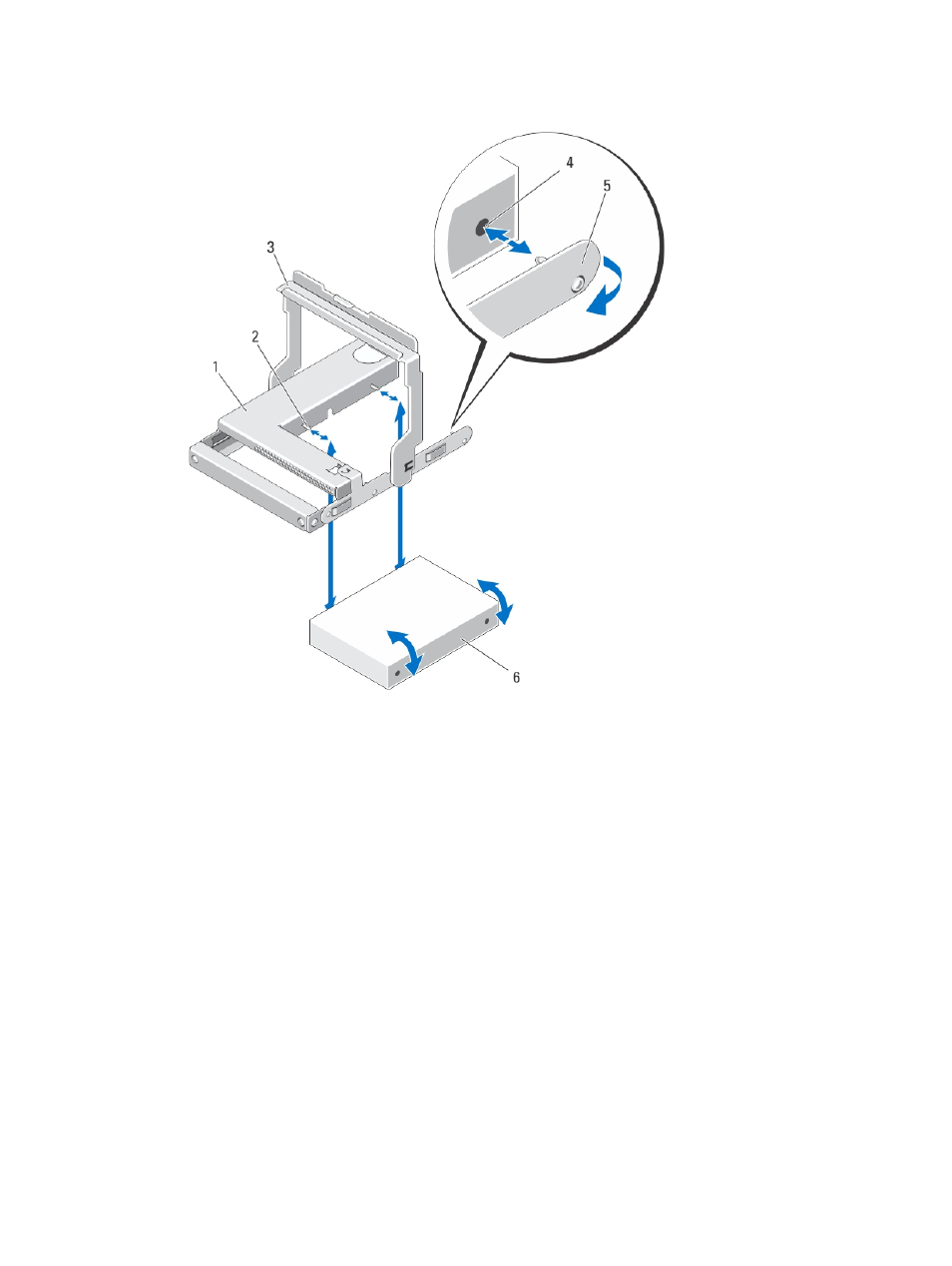

Figure 20. Removing and Installing the 2.5 Inch Physical Disk in a 2.5 Inch Physical-Disk Carrier

1. 2.5 inch physical drive cage
2. guide pins (4)
3. release handle
4. holes on physical disk (4)

5. carrier for 2.5 inch physical disk
6. 2.5 inch physical disk
