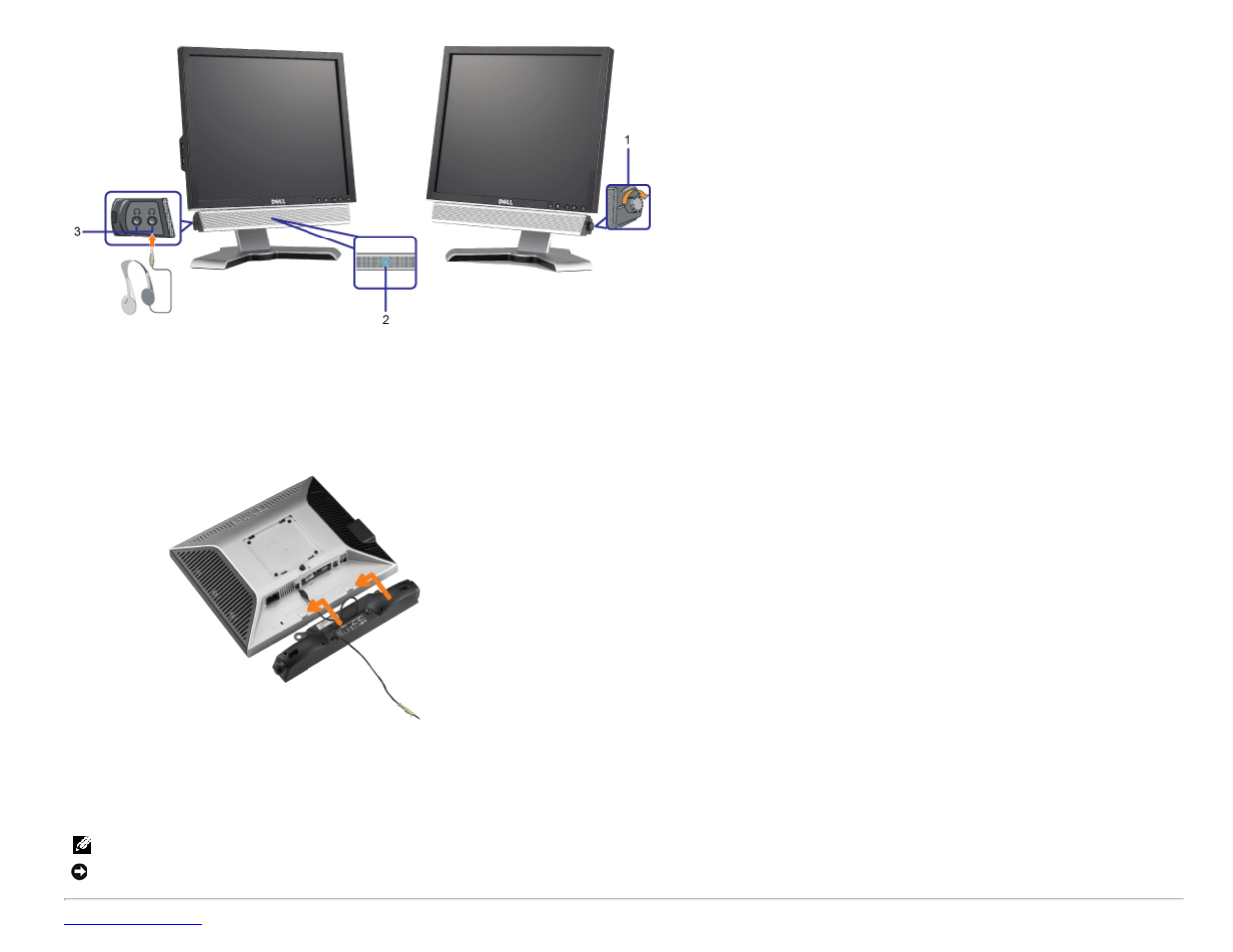

level, a blue LED for power indication, and two audio headset jacks.

1. Power/volume control
2. Power indicator
3. Headphone connectors

Soundbar Attachment to the Monitor

1.

Working from the rear of the monitor, attach the Soundbar aligning the two slots with the two tabs along the bottom rear of the monitor.

2.

Slide the Soundbar to the left until it snaps into place.

3.

Plug in the power cord from the Soundbar into the connector on the back of the monitor.

4.

Insert the lime-green mini stereo plug from the rear of the Soundbar into the computer's audio output jack.
NOTE: Soundbar Power Connector +12V DC output is for optional only.

NOTICE: Do not use with any device other than Dell Soundbar
