General purpose, Weight and ground pressure buckets, General dimensions – Case Construction CX75SR User Manual
Page 7
CX75 SR - 00
7
CX75
SR
2,70 m
2,97 m
2,23 m
R=1,21 m
5,97 m
1,16 m
1,07 m
1,87 m
0,45 m
2,32 m
0,36 m
2,21 m
2,85 m
3,28 m
4,55 m
2,70 m
2,70 m* / 2,95 m**
2,23 m
R=1,21 m
5,92 m* / 5,91 m**
1,16 m
1,07 m
1,87 m
0,45 m
2,32 m
0,36 m
2,21 m
2,85 m
3,28 m
4,49 m
CX75
SR
Weight and ground pressure
Buckets
General purpose
SAE capacity
Litres
110
130
140
160
240
310
360
Width
mm
300
350
400
450
600
750
850
Weight
kg
117
125
138
145
170
200
220
Other types of bucket on application.
Shoes 450 mm - bucket
Weight
Ground
operator and full fuel tank
(kg)
Pressure (bar)
Monobloc boom - 1.70 m dipper
7660
0.34
Offset boom and 1.75 m dipper
8060
0.36

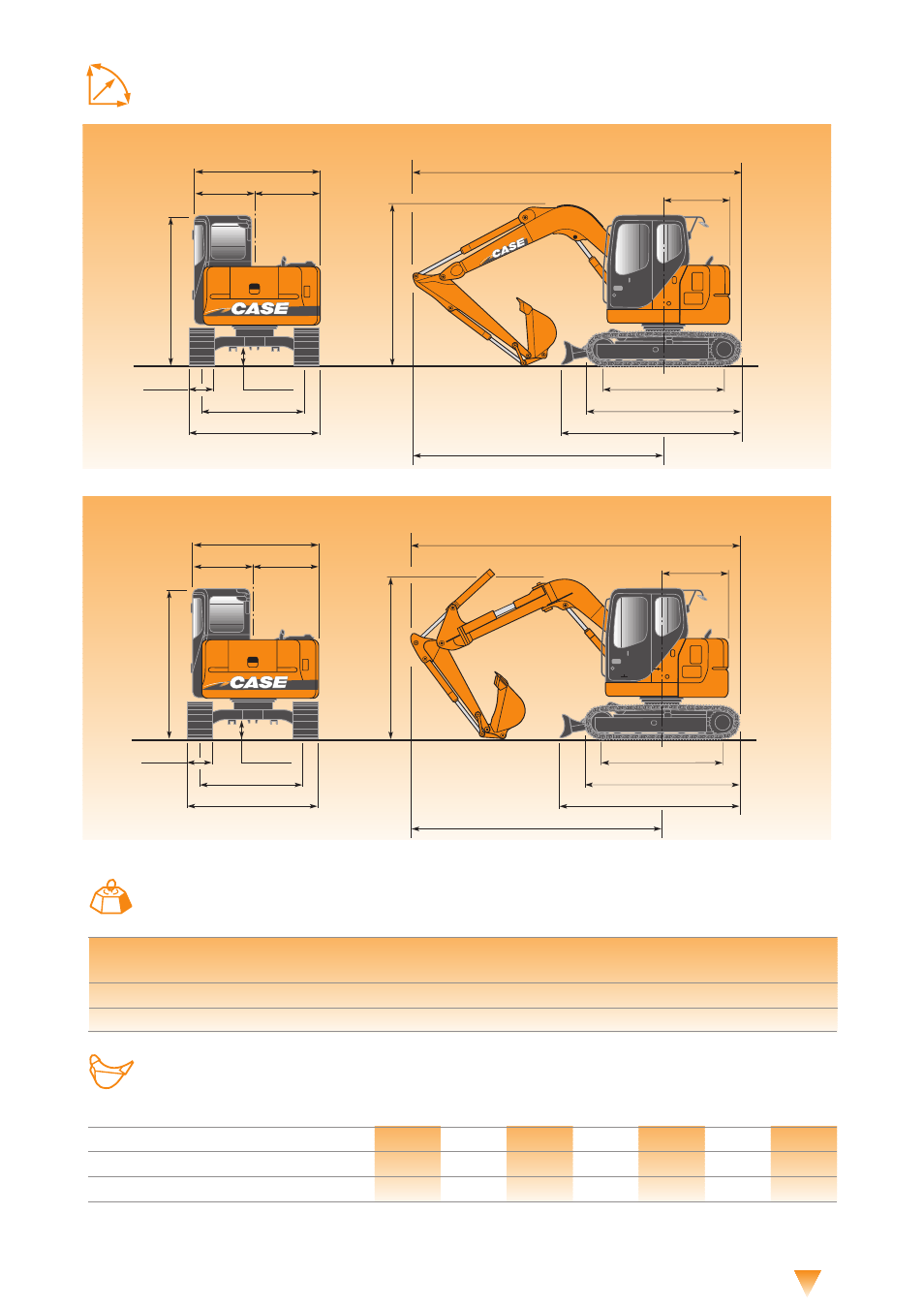

General dimensions
Monobloc boom
Offset boom - dipper 1.75 m
* With 1.70 m dipper
** With 2.10 m dipper
