Upperstructure
The “short radius” CX75SR has special specifications compared to “standard” models:
•
Shorter upperstructure radius for the rear part.
•
Theboomfootispositionedclosetotheupperstructureswingaxissoastohavetheminimumattachment
front swing radius.
•
Cab is within the upperstructure swing radius .
•
The width of upperstructure is close to the width of the undercarriage (using standard track pads).
•
Counterweight and general stability of the machine provides lifting capacities identical to “standard”
machines.

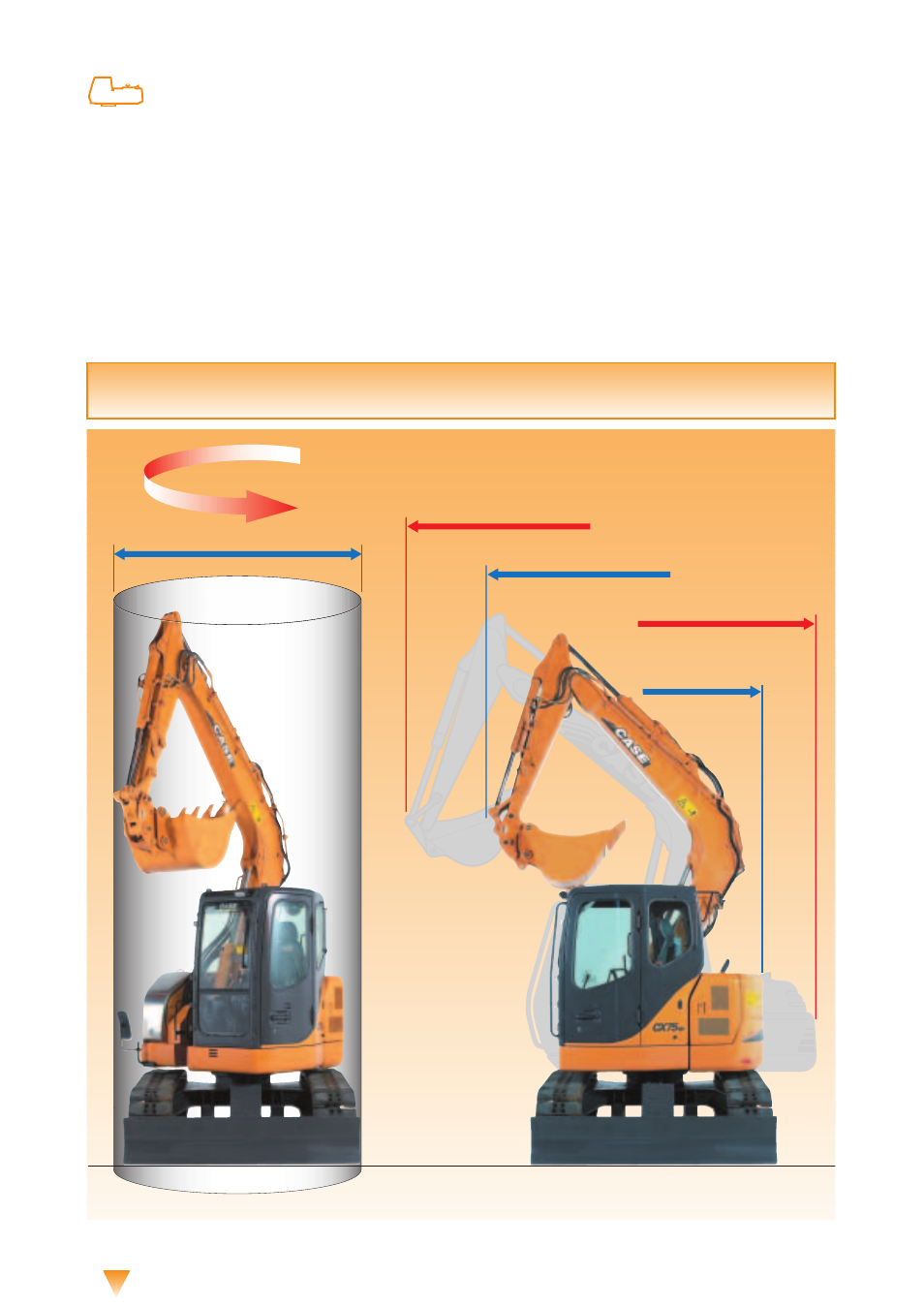

Standard models
Standard models
Radius mini = 1.80 m
Swing radius = 1.20 m
Ø 3.60 m
RESPECT OF ENVIRONMENT
The excavator respects the
European “reduced noise level”
as per directive 2000/14/EC Phase 2.
