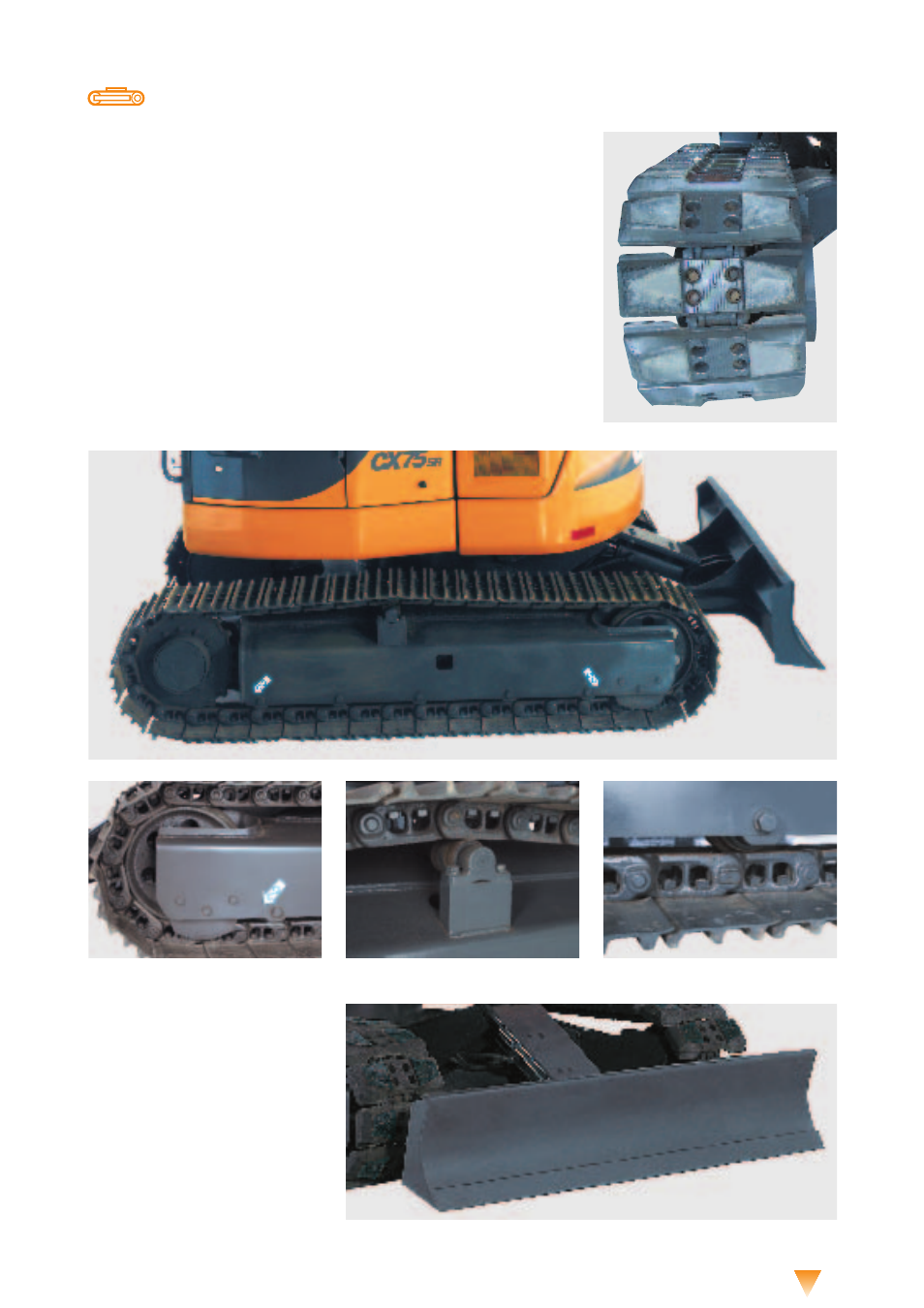

Undercarriage
LC type undercarriage providing
excellent stability (as a result of
its length) and loading capacity
comparable to machines of
standard dimensions.
Steel or rubber tracks are
available.
Upper and lower tracks equip-
ped with bushings and seals.
Travel motors protected and
incorporated in the under-
carriage.
Track tension adjustable by
grease cylinder.
DOZER BLADE
Dozer blade control lever at
console height to the right hand
side of the cab. Dozer blade
movement by a central hydrau-
lic cylinder.
Dozer blade width............. 2.32 m
Dozer blade height.......... 0.450 m
Maximum raising height 0.415 m
Maximum underground
lowering depth................. 0.205 m
SPECIFICATIONS
(per track set)
Number of upper rollers.......... 1
Number of lower rollers.......... 5
Number of track pads............ 39
Type of track pads Triple grousers
Optional Rubber track pads
Standard track pad size 450 mm
Gradeability ............... 70% (35°)
Front chain guide
