9. USB 3.0 connectors (2)
10. hard drive
11. fingerprint reader (optional)
12. wireless switch
13. display latch release button
14. touchpad buttons (3)
15. touchpad
16. track stick buttons (3)
17. track stick
18. keyboard
19. device status lights
20. volume control buttons

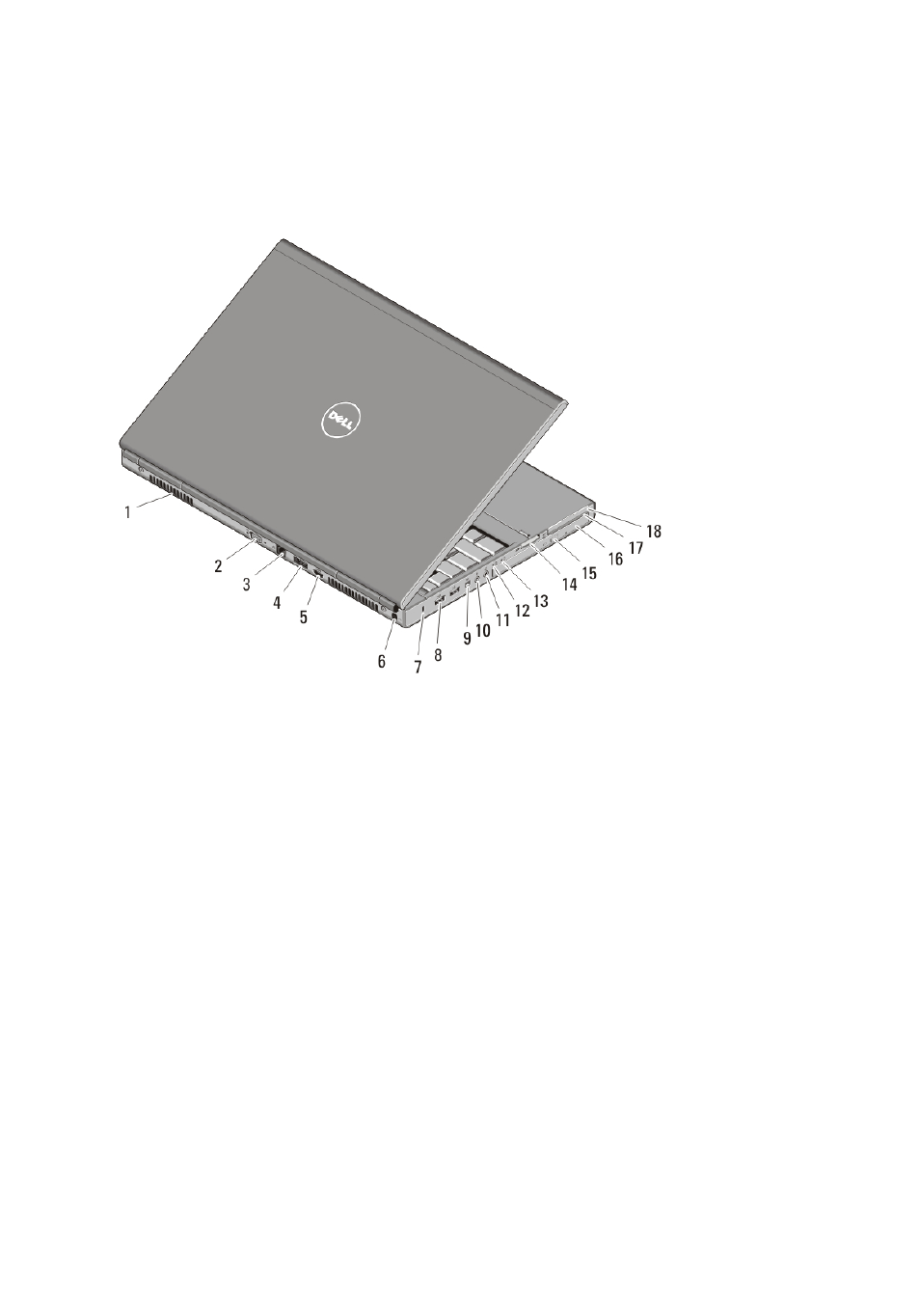

Figure 2. Back View
1. cooling vents
2. VGA connector
3. network connector
4. eSATA/USB 2.0 connector
5. HDMI connector
6. power connector
7. security cable slot
8. USB 2.0 connectors (2)
9. IEEE 1394 port (4-pin) 10. microphone connector
11. headphone connector
12. battery status light
13. power light
14. 8-in-1 card reader slot
15. optical drive eject button
16. optical drive
17. smart card reader slot
18. ExpressCard slot
