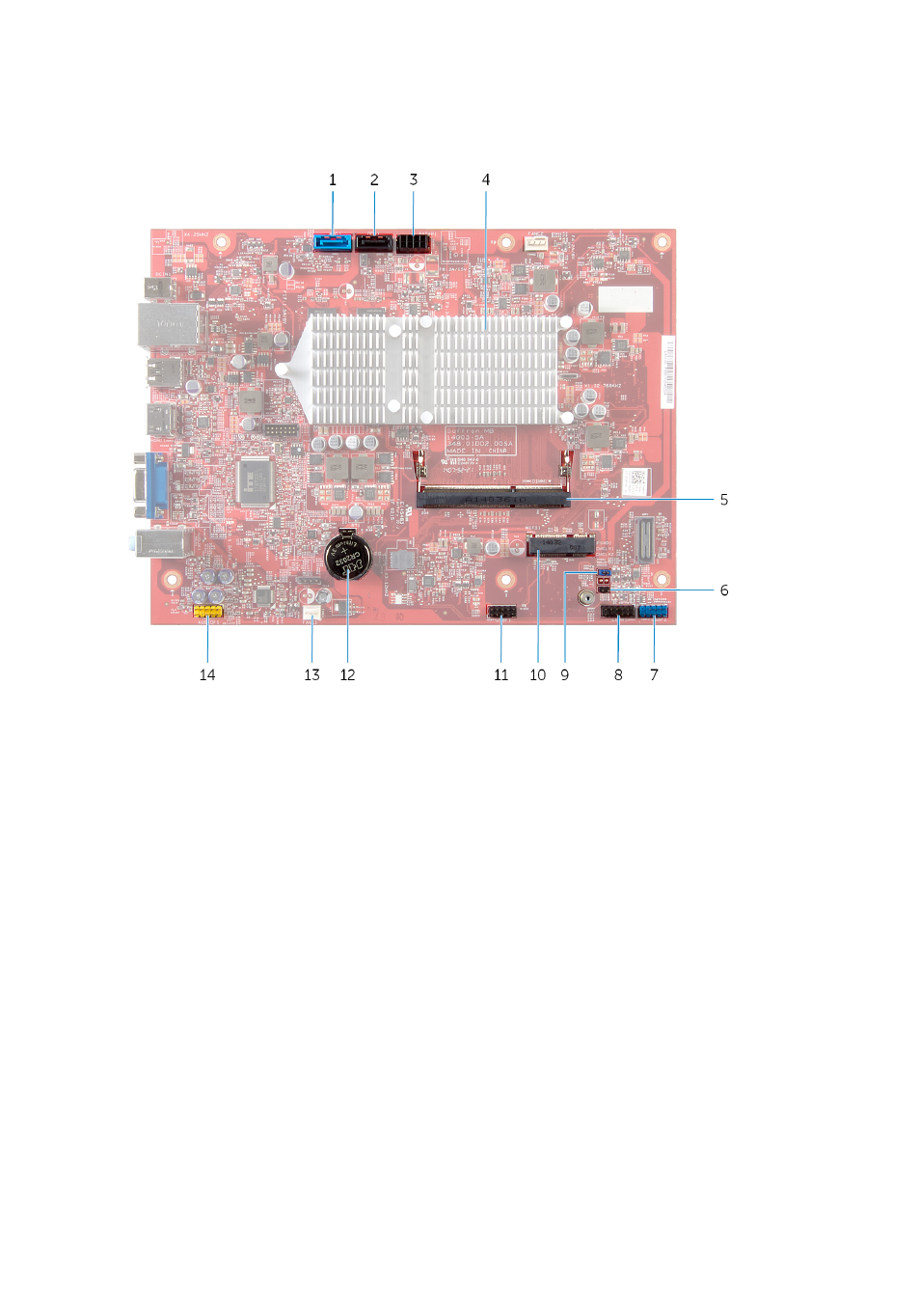

System-Board Components
1 hard-drive data cable connector
(HDD1) 2 optical-drive data cable
connector (ODD1)
3 hard-drive and optical-drive
power cable connector (SATAP1) 4 heat-sink assembly
5 memory-module connector
(DIMM1) 6 CMOS clear jumper (CMCL R2)
7 front panel USB connector
(USBF2) 8 power button connector
(LEDH1)
9 Password clear jumper (PSWD1) 10 wireless-card slot
11 media-card reader cable
connector (USBF1) 12 coin-cell battery (BT1)
13 fan-cable connector (FANC1) 14 front-panel audio connector
(AUDIOF1)
