Crestron SMK-6X Swivel Mount Kit for TPS-6X

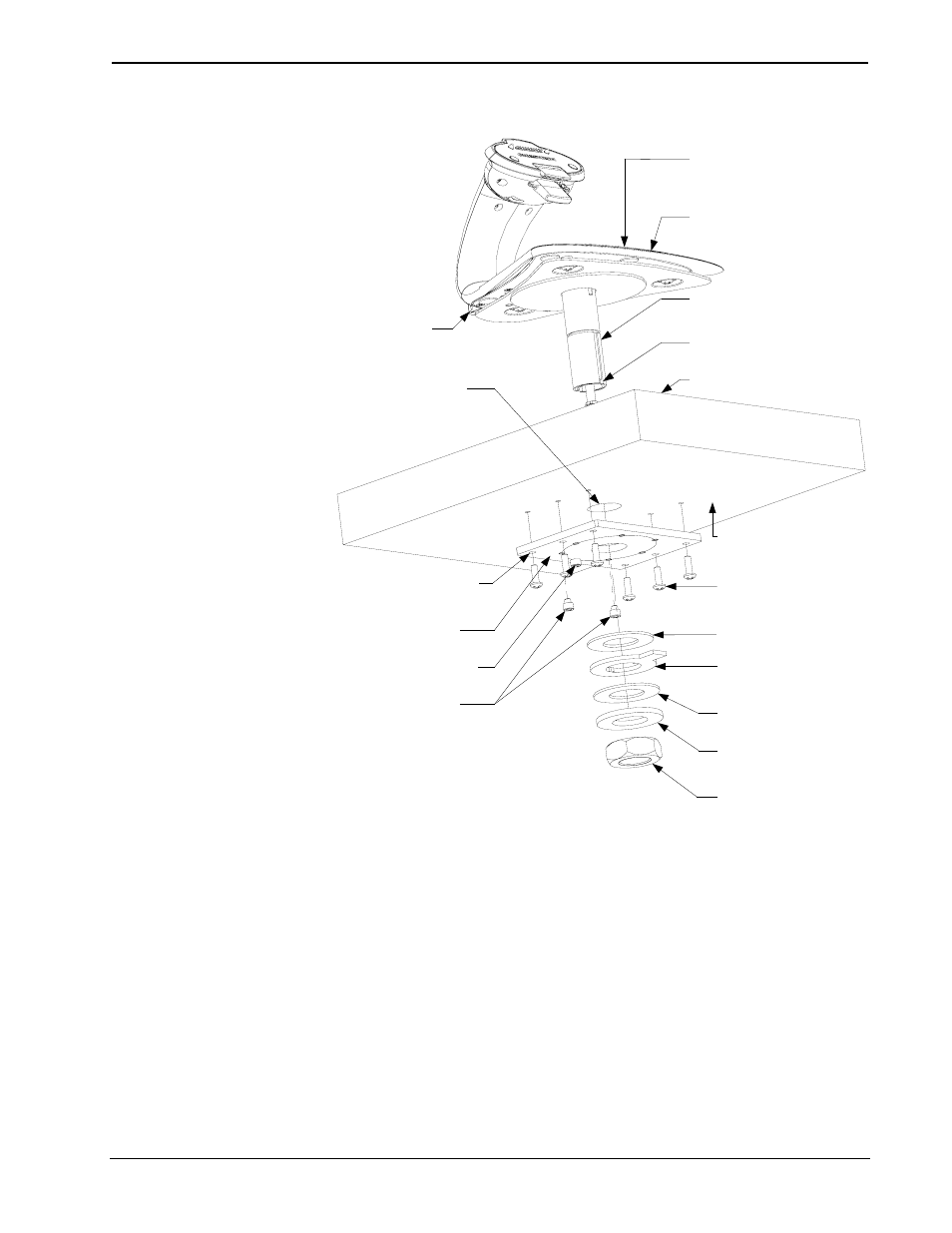

SMK-6X Swivel Mount Kit Installation Diagram
Rear Of
TPS-6X-DS
TPS-6X-DS Attached
To Swivel Mechanism
Plate
Front Of
TPS-6X-DS
Swivel Mechanism
Tube
Slot In Tube
Table Or Mounting
Surface (Front Edge)
Mounting Holes (6) In
Swivel Stop Plate
Swivel Stop Plate
(4504353)
Permanently Installed
Limiting Screw
Screws (2) #08-32
(2017634)
Bottom Side of Table or
Mounting Surface
Screws (6) #08-8B
(2017784)
Cork/Rubber Washer
(2017614)
Keyed Metal Washer
(4506321)
Rubber Washer
(2017615)
Flat Steel Washer
(2017633)
Nut #7/8"-14, Steel
(2017632)
Mounting Hole
Installation Guide – DOC. 6577A Swivel Mount Kit for TPS-6X: SMK-6X • 7
