Configuring the EMP 11
Viewing and Saving Environment Log Data
NOTE: Temperature and humidity measurements are recorded at an interval defined on the environment log
interval on the System Settings page (refer to the Network Management Card user’s guide for information on
system settings). By default, this period is 300 seconds.
Each measurement is dated and stored in the log of the UPS’s communication card. The size of log files is limited
by a time indexing system.
1 Select Log from the Environment menu to display the Environment Log Data page. The Environment
Log Data page displays the recorded date, time, temperature, and humidity measurements
(see Figure 8).

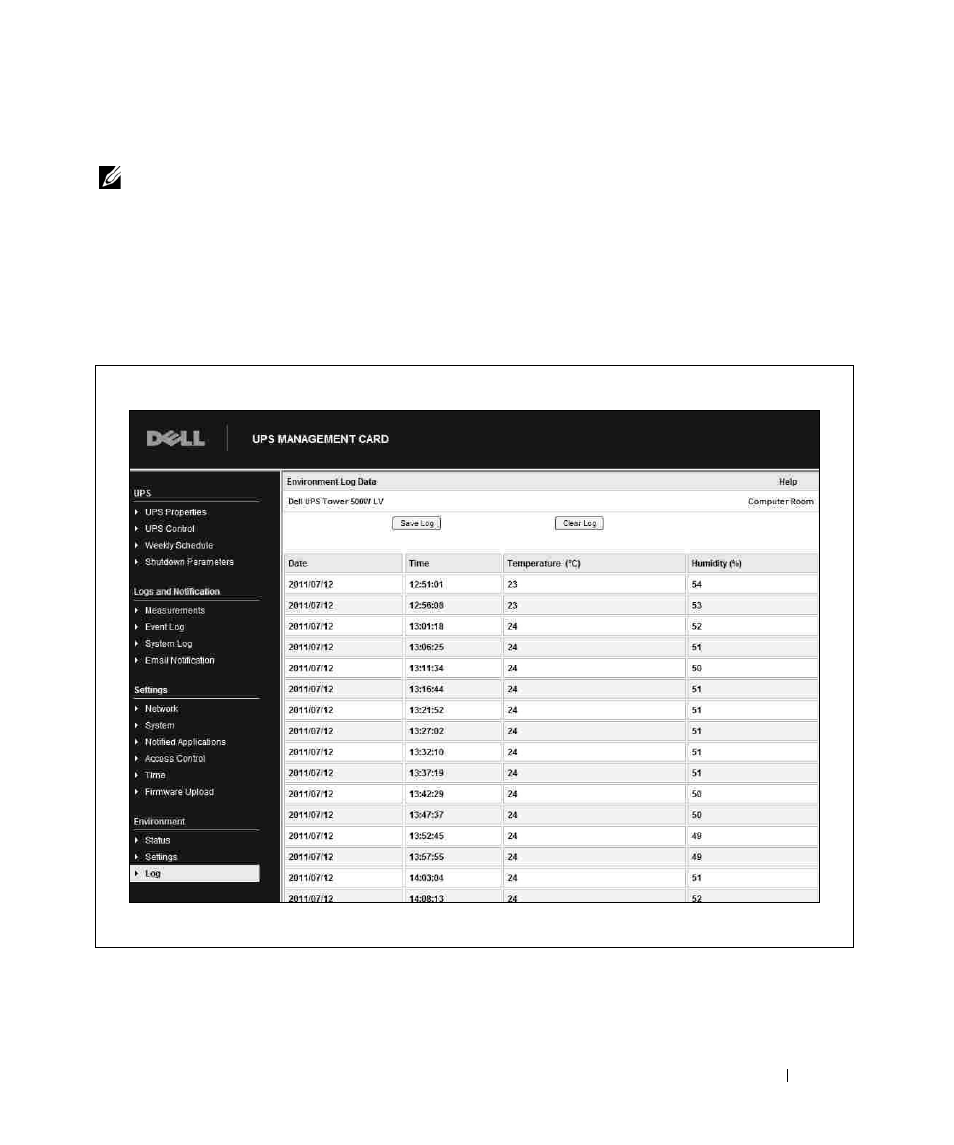

Figure 8. Environment Log Data page
2 Click Save Log to save the log in a CSV format file to your computer.
3 Click Clear Log to clear the files contained in the card and to reset the log.
