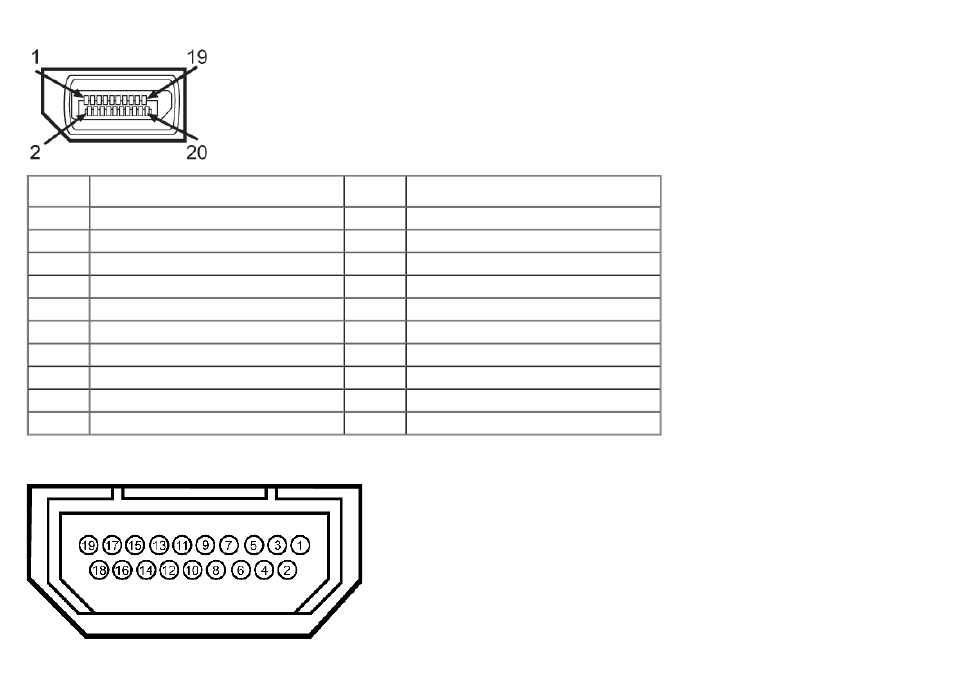

DisplayPort Connector

Pin

Numberr

20-pin Side of the monitor connector

Pin

Numberr

20-pin Side of the monitor connector

1

ML0(p)

11

GND

2

GND

12

ML3(n)

3

ML0(n)

13

GND

4

ML1(p)

14

GND

5

GND

15

AUX(p)

6

ML1(n)

16

GND

7

ML2(p)

17

AUX(n)

8

GND

18

HPD

9

ML2(n)

19

DP_PWR Return

10

ML3(p)

20

+3.3 V DP_PWR

19-pin HDMI Connector
