Dell U2713HM Monitor - Manual (Page 11)

Bottom View

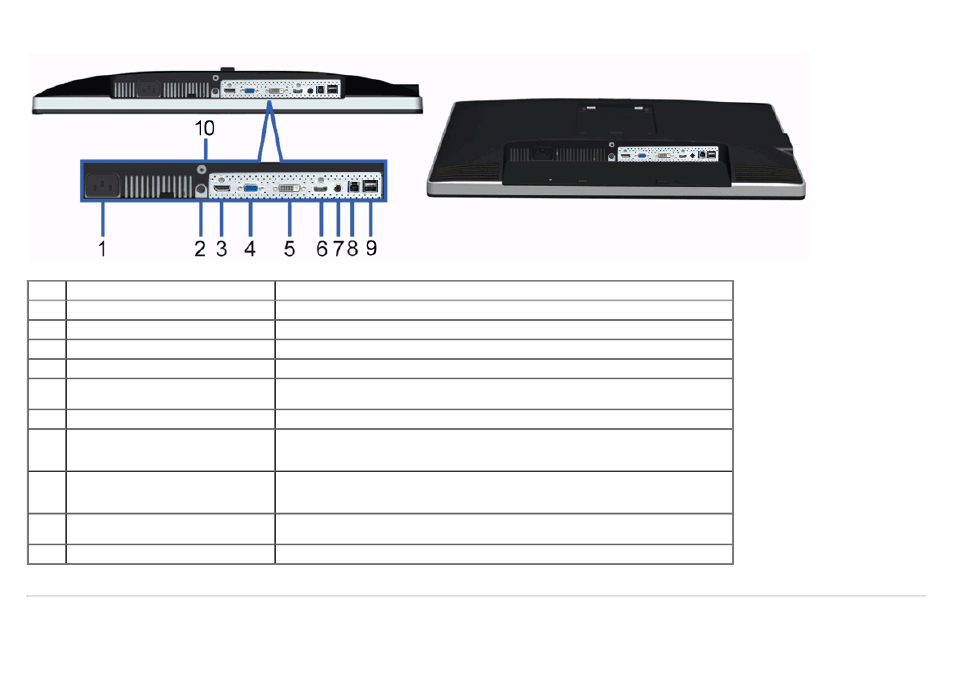

Bottom view Bottom view with monitor stand
Label Description Use
1 AC power cord connector Connect the power cable.
2 DC power connector for Dell Soundbar Connect the power cord for the soundbar (optional).
3 DisplayPort connector Connect your computer DP cable.
4 VGA connector Connect your computer VGA cable.
5 DVI connector Connect your computer DVI (Dual link) cable. Ensure Dual Link DVI cable is used. This
connector is compatible with only Dual Link DVI cables (Supplied together with monitor).
6 HDMI connector Connect devices such as a DVD player or set-top box.
7 Audio connectors Connect the HDMI 1.4 channel or DisplayPort 1.2 channel audio output devices.
Connect the audio channel output to the black connector. Use this connector for 2.0
channel audio connection. *
8 USB upstream port Connect the USB cable that came with your monitor to the monitor and the computer.
Once this cable is connected, you can use the USB connectors on the side and bottom of
the monitor.
9 USB downstream ports Connect your USB devices. You can only use this connector after you have connected the
USB cable to the computer and USB upstream connector on the monitor.
10 Stand lock feature To lock the stand to the monitor using M3x12 mm machine screw (screw not provided).
* Headphone usage is not supported for the audio line out connector.
