Dell U2713HM Monitor - Manual (Page 17)

2 Video-Green 10 GND-sync
3 Video-Blue 11 GND
4 GND 12 DDC data
5 Self-test 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC clock
8 GND-B

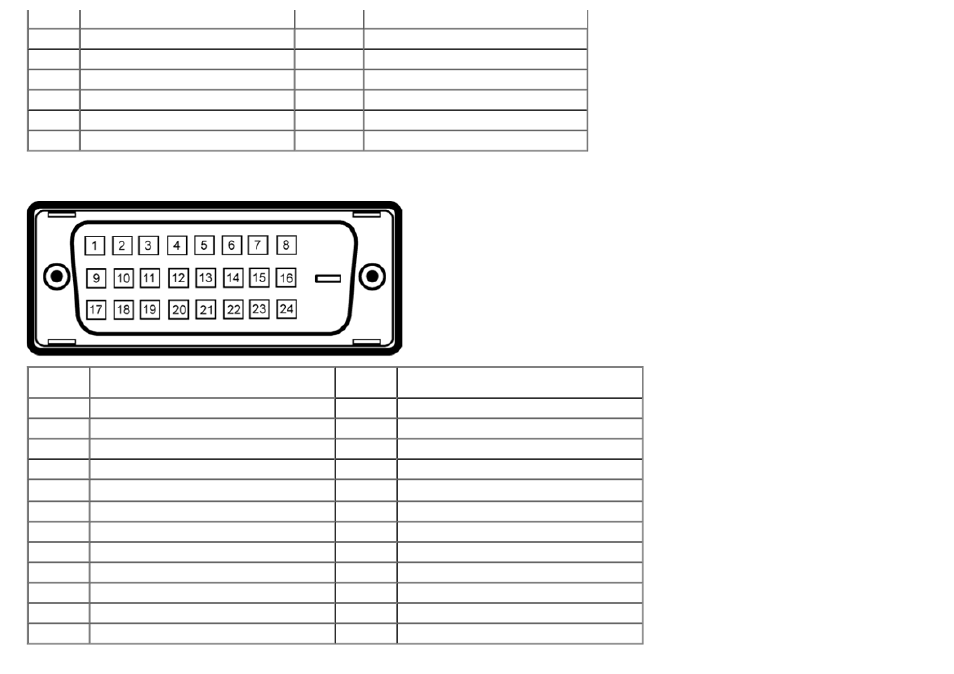

DVI Connector
Pin
Numberr
24-pin Side of the monitor connector Pin
Numberr
24-pin Side of the monitor connector
1 TMDS RX2- 13 Floating
2 TMDS RX2+ 14 +5 V/+3.3 V power
3 TMDS Ground 15 Self test
4 Floating 16 Hot Plug Detect
5 Floating 17 TMDS RX0-
6 DDC Clock 18 TMDS RX0+
7 DDC Data 19 TMDS Ground
8 Floating 20 Floating
9 TMDS RX1- 21 Floating
10 TMDS RX1+ 22 TMDS Ground
11 TMDS Ground 23 TMDS Clock+
12 Floating 24 TMDS Clock-
