Mini PCI Card
Dell™ Latitude™ D410 Service Manual
Removing the Mini PCI Card
1.
Follow the instructions in "
Preparing to Work Inside the Computer
.
2.
Remove the
center control cover
.
3.
Remove the
keyboard
.
4.

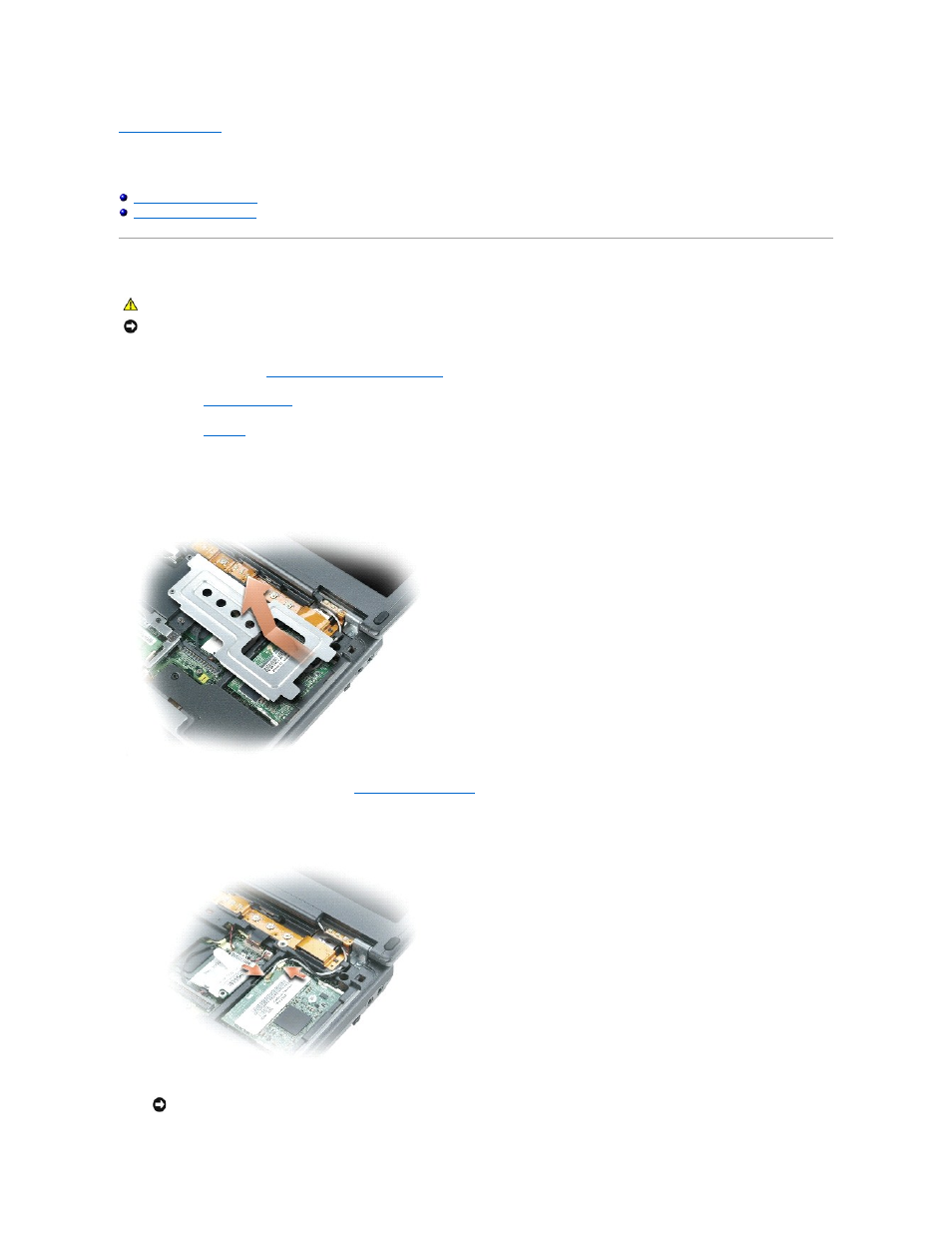

Remove the metal shield:
a.
Loosen the two captive screws that secure the metal shield.
b.
Lift the shield on the side near the screw hole, slide the shield tabs out from under the edge of the computer base, and lay the shield aside.
5.
If a Mini PCI card is not already installed, go to "
."
If you are replacing a Mini PCI card, remove the existing card:
a.
Disconnect the antenna cables from the Mini PCI card.
CAUTION:
Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE:
To prevent damage to the Mini PCI card connector, do not use tools to spread the securing clips that secure the card.
