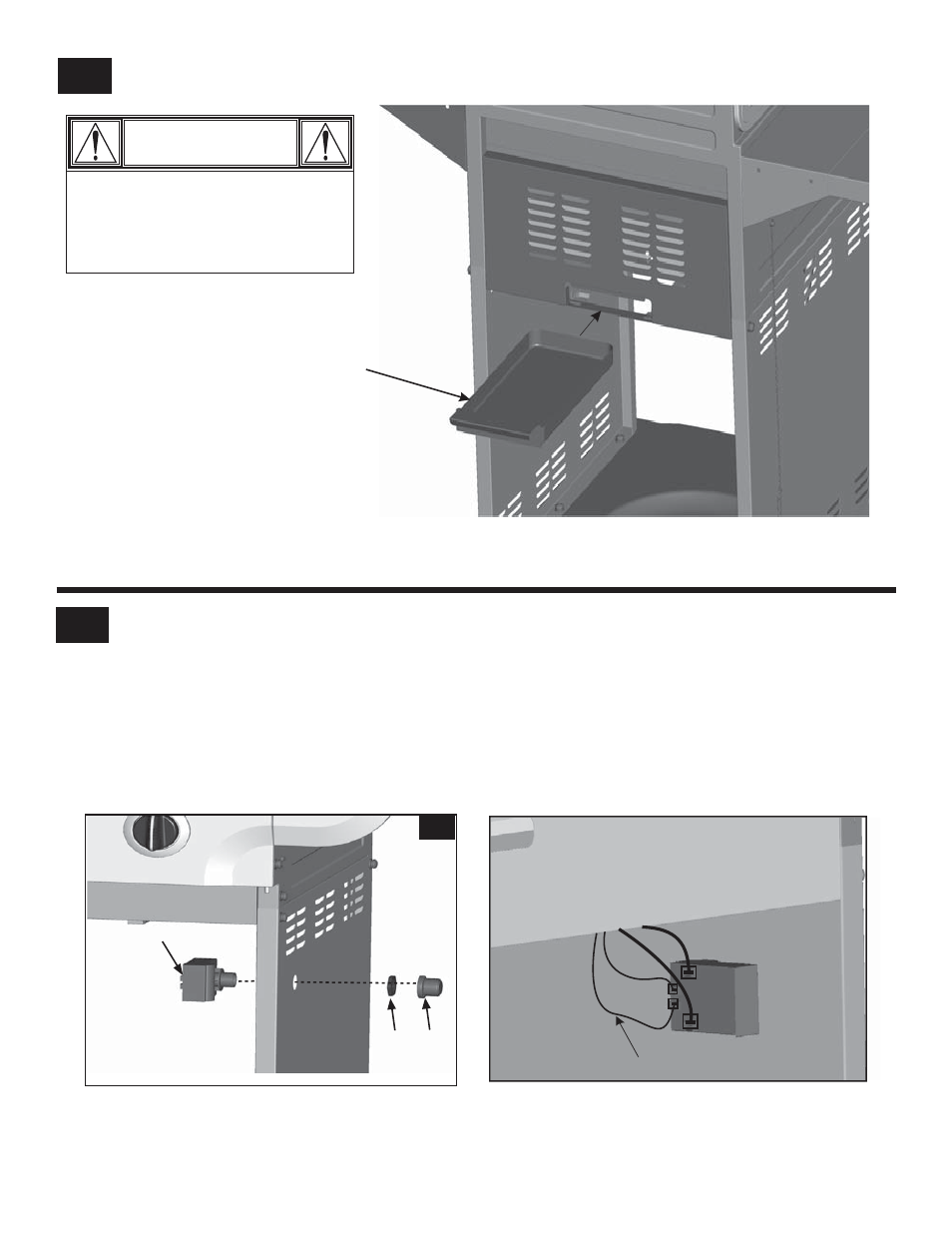

On back of grill, slide grease tray into opening in upper back panel.
CAUTION
Failure to install grease tray will
cause hot grease to drip from bottom
of grill with risk of fire or property
damage.
10
19
Grease tray
11
Connect each of the wires from the main burner electrodes into the back of the Electronic Ignition Module.
T otal (2) connections.
Connect the two wires [(A) and (B)] from the switch wiring harness into the back of the Electronic Ignition Module.
NOTE: Switch terminals are larger than electrode terminals and should only be installed in location shown as (A),(B).
Wire
1
2
(A)
(B)
Total (2) connections.
Release the cap and nut from electronic ignition module. Attach electronic ignition module to the cart right side panel with
the nut and cap, shown A.
ignition module
Electronic
A
Cap Nut
Right side panel
