PCI/104-Express to PCI Express Adapter
5 www.connecttech.com CTIM-00054 (0.01) 3/26/2010
800-426-8979 | 519-836-1291
2. Hardware Installation
PC104 Stand-Offs
When installing the ADG017 or ADG20 device into your PCI/104-Express SBC system, four proper stack
heights (0.6”) PC/104 standoffs must be used. If standoffs are not used, there is high likelihood that the
PCI/104-Express connector can be damaged.

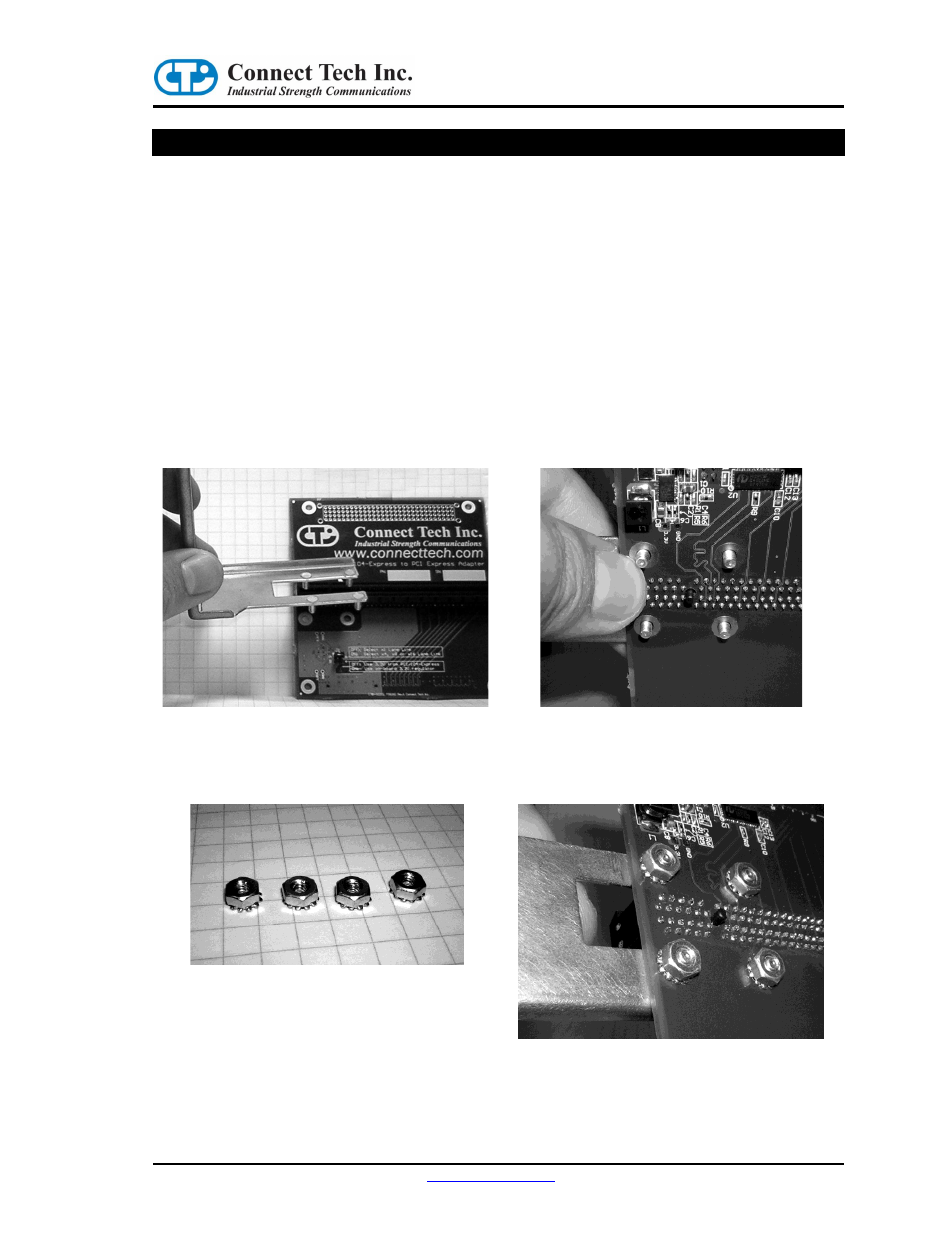

Support Bracket Installation
All of the ADG017 and ADG020 products ship with a Standard Height PCI Express Custom Support Bracket
that can be optionally installed to provide greater stability to the PCI Express device installed into your
PCI/104-Express stack. Below are some instructions on how to properly install the bracket.
STEP #1
Insert bracket into alignment holes
STEP #2
Install and tighten each of the 4 supplied nuts.
