PCI/104-Express to PCI Express Adapter
CTIM-00054 (0.01) 3/26/2010 www.connecttech.com 4
800-426-8979 | 519-836-1291
Introduction
Connect Tech's PCI/104-Express to PCI Express Adapter enables users to install any x1, x4, x8 or x16 lane
PCI Express card in a PCI/104-Express stack.
This convenient adapter board enables the testing and development for standard PCI Express cards in the
PCI/104-Express environment.
Features
PCI/Express x1, x4, x8, x16 Lane Card Compatible
PCI/104-Express & PCIe/104 Compatible
SBC Top Stacking Compatible

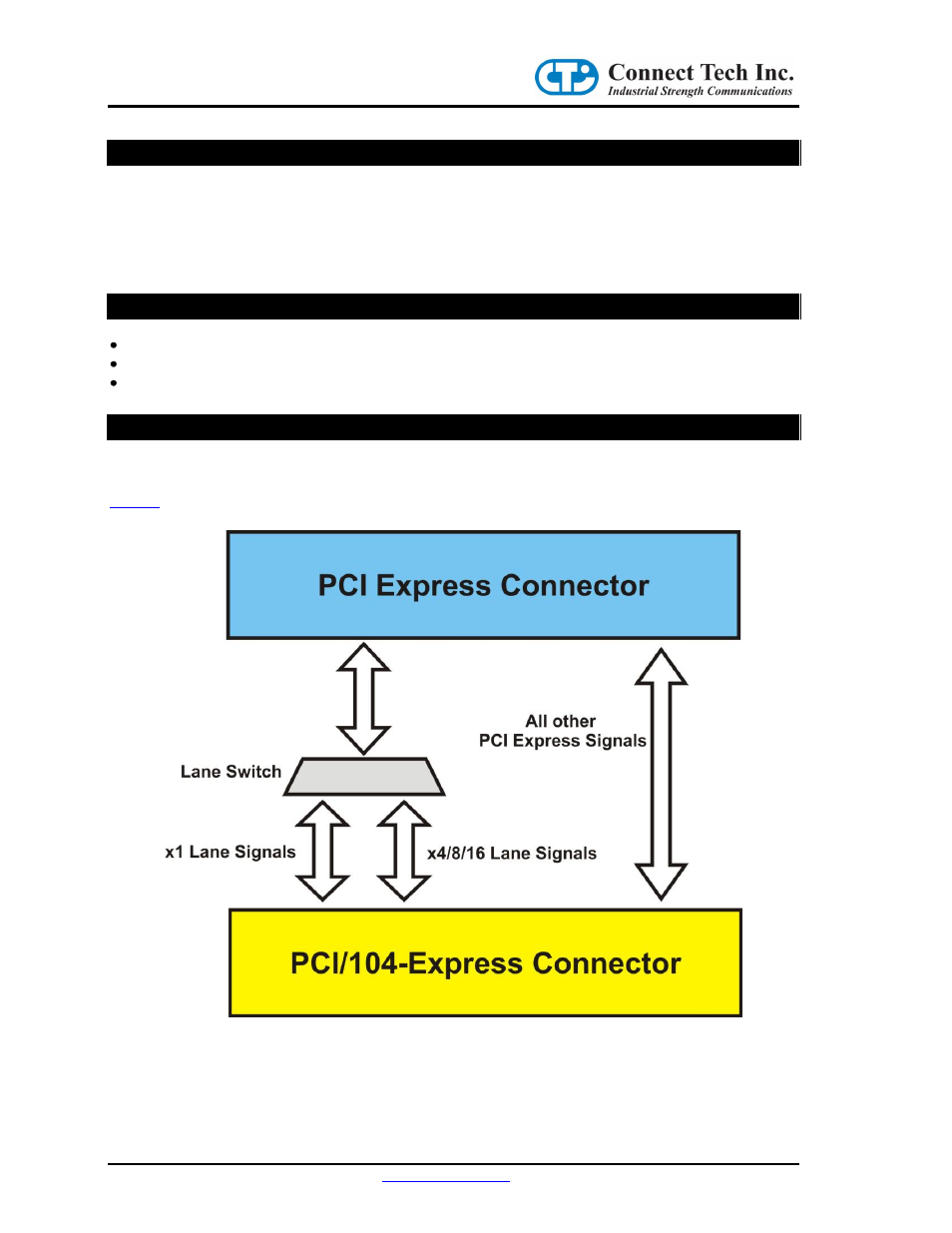

1. Block Diagram
Below is a high level view of the PCI/104-Express to PCI Express Adapter. Aside from the x1 and x16 lane
switch the rest of the PCI express signals are direct connections to those of the PCI/104-Express signals. See
Table 1 in this manual for a full listing of pinouts and interconnections.
