Workgroup Remote Access Switch 59

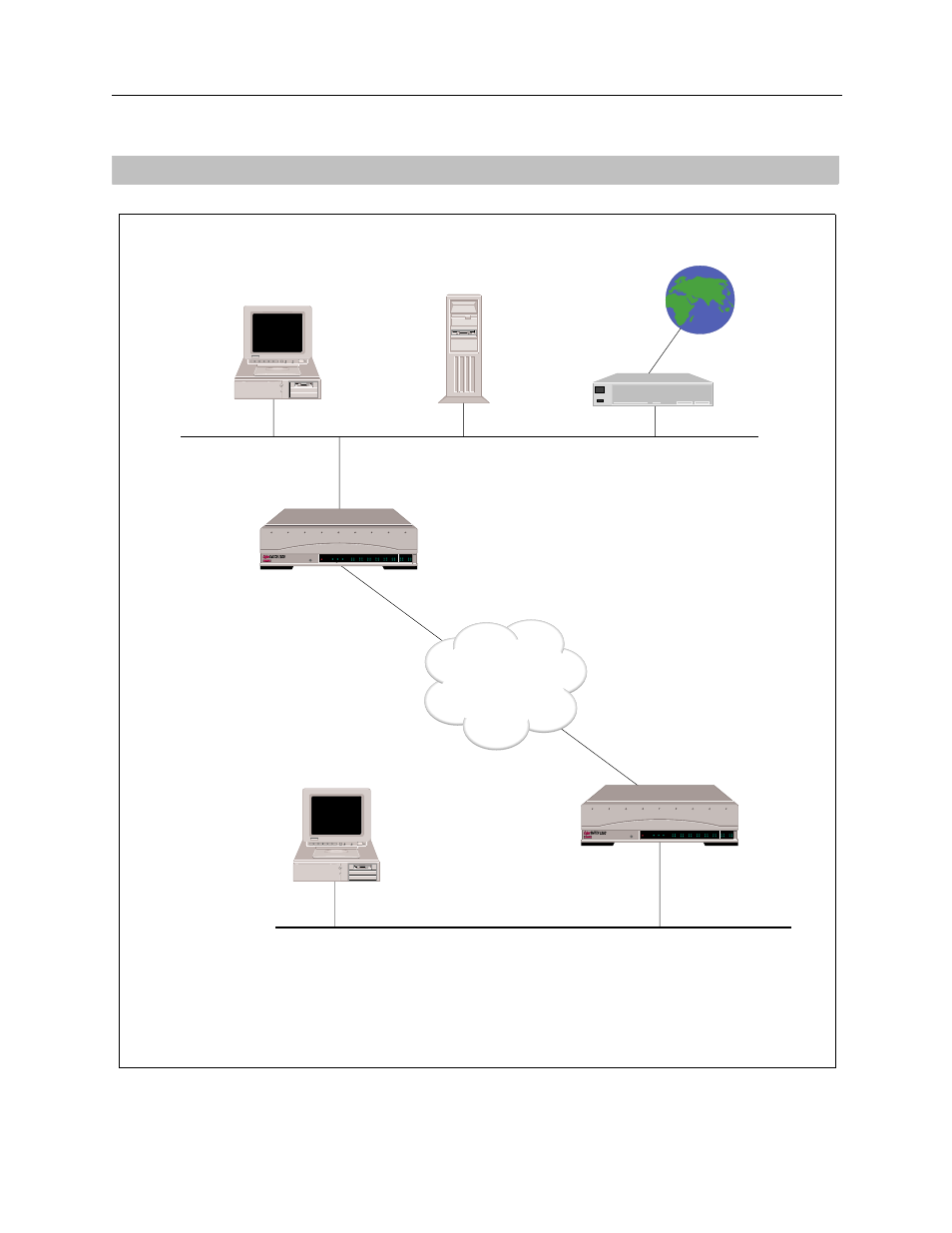

IP R OUTING N ETWORK WITH PPP D EVICES
Initial Installation Steps
Host #1
File Server
Internet
Router
LAN 1
128.1.1.8 128.1.1.3 128.1.1.7
LAN Interface 128.1.1.1
CSX1200
Phone Number:
918105551234
IP UnNumbered Interface for
SITE1 and SITE2
Host #2
LAN 2
128.3.3.4
Phone Number:
913135553232
LAN Interface 128.3.3.1
ISDN
CSX1200
POWER SERVICE TX RX 10BASE - T LAN B-CHANNELS E1 ONLY
B2 B4 B6 B8 B26 B28 B22 B24 B18 B20 B14 B16 B10 B12 B30 L1
B1 B3 B5 B7 B25 B27 B21 B23 B17 B19 B13 B15 B9 B11 B29 B31 E1 D T1 D
POWER SERVICE TX RX 10BASE - T LAN B-CHANNELS E1 ONLY
B2 B4 B6 B8 B26 B28 B22 B24 B18 B20 B14 B16 B10 B12 B30 L1
B1 B3 B5 B7 B25 B27 B21 B23 B17 B19 B13 B15 B9 B11 B29 B31 E1 D T1 D
"SITE1"
"SITE2"
N ETWORK T OPOLOGY
