EXAMPLE NETWORKS

14 CyberSWITCH

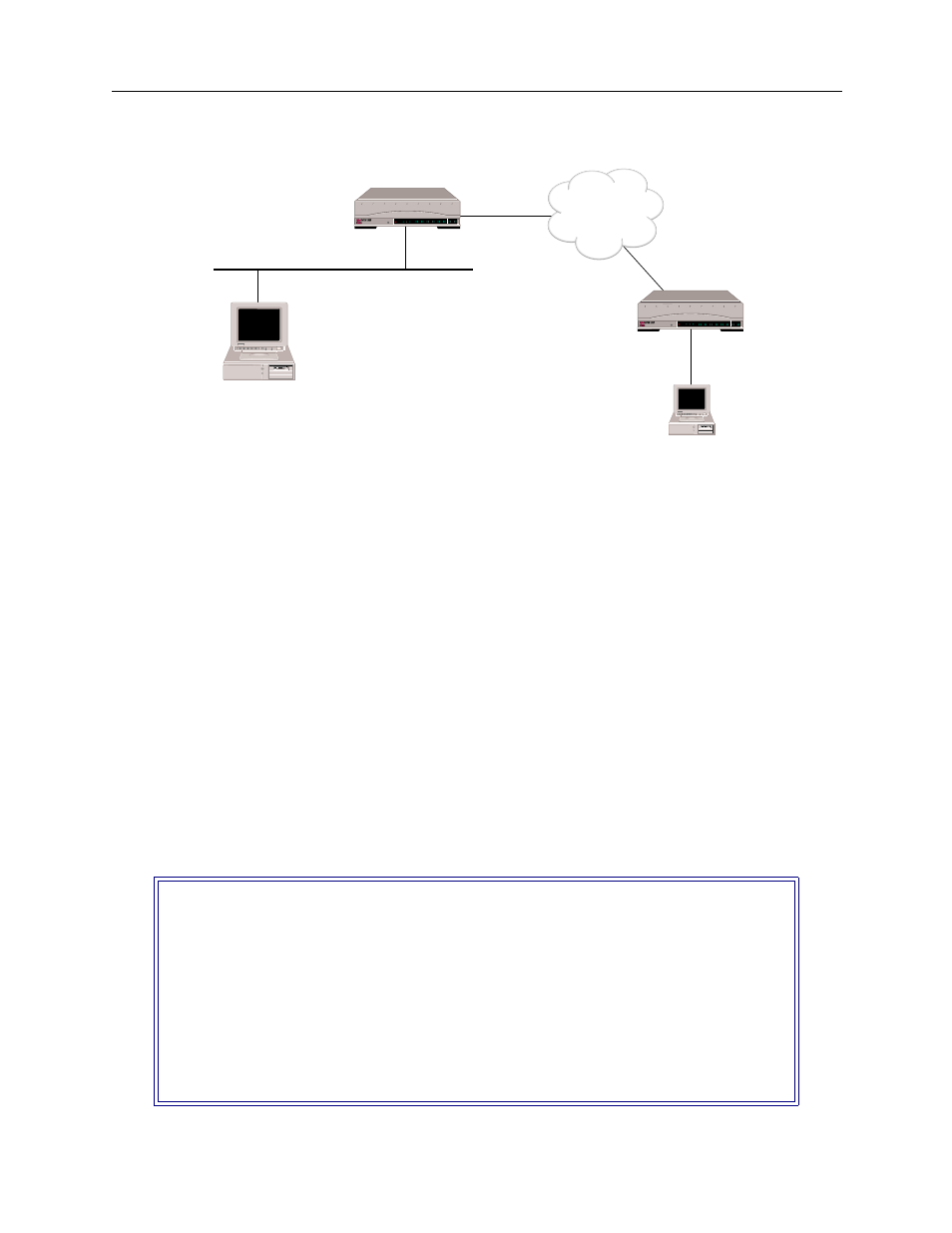

The network illustrated above is a bridged network. Each system, SITE1 and SITE2 have been
configured with all the necessary bridging information. SITE1 and SITE2 have also been configured
in the IP host operating mode, and each have an IP host interface. This will allow each system to be
managed remotely by the PC using Telnet client software (once the initial configuration has been
completed).

Note that the IP address associated with each system is on the same LAN as the PC. This does not
have to be the case. As long as the PC has access to the systems through their IP addresses, it can
manage the systems using Telnet (or one of the other IP applications).

The steps below describe the configuration steps needed for the above example:

To enable the IP Host Operating Mode:

Select IP Operating Mode from the IP configuration menu.

Select IP host operating mode.

Note:

The IP operating mode can not be set to host unless bridging is enabled.

When you select the IP host operating mode, an abbreviated IP configuration will be displayed
(similar to the following):

IP Menu:

1) IP Routing (Enable/Disable)
2) IP Operating Mode
3) IP Interfaces
4) IP Static Routes
5) RIP (Enable/Disable)
6) IP Static ARP Table Entries
7) Isolated Mode (Enable/Disable)
8) Static Route Lookup via RADIUS (Enable/Disable)
9) IP Address Pool
10) IP Filter Information
11) DHCP Information

Select function from above or for previous menu:

Telnet Client

192.42.1.0

IP Host Interface

192.42.1.6

IP Host Interface

192.42.1.7

ISDN

CSX1200 "A"

CSX1200 "B"

POWER

SERVICE

10BASE - T

LAN B-CHANNELS E1 ONLY

B2 B4

B6 B8

B26 B28

B22 B24

B18 B20

B14 B16

B10 B12

B30 L1

B1 B3

B5 B7

B25 B27

B21 B23

B17 B19

B13 B15

B9 B11

B29 B31
